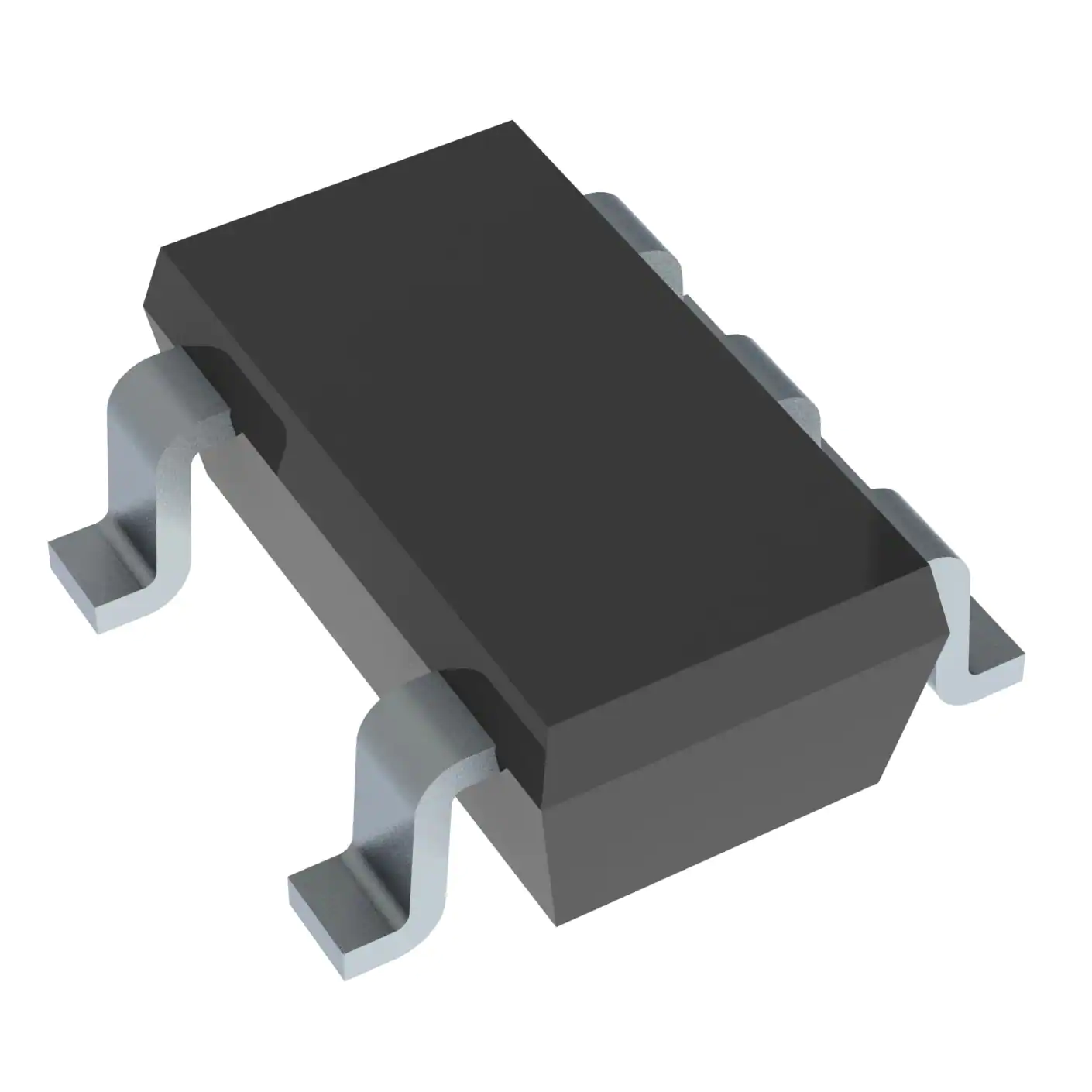

| Part Number | SN74AHCT1G04DBVT | SN74AHCT1G14DBVT | SN74AHCT1G08DBVT | SN74AHCT1G00DBVT | SN74AHCT1G02DBVT | SN74AHCT1G04DBV3 | SN74AHCT1G04DBVR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | AND Gate | NAND Gate | NOR Gate | - | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Number of Inputs | 1 | 1 | 2 | 2 | 2 | - | 1 |
| Features | - | Schmitt Trigger | - | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | - | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | - | 1 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | - | 8mA, 8mA |
| Logic Level - Low | 0.8V | 0.5V ~ 0.6V | 0.8V | 0.8V | 0.8V | - | 0.8V |
| Logic Level - High | 2V | 2V | 2V | 2V | 2V | - | 2V |
| Max Propagation Delay @ V, Max CL | 9ns @ 5V, 50pF | 8ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.9ns @ 5V, 15pF | 7.5ns @ 5V, 50pF | - | 9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C | - | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | - | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | - | SC-74A, SOT-753 |
