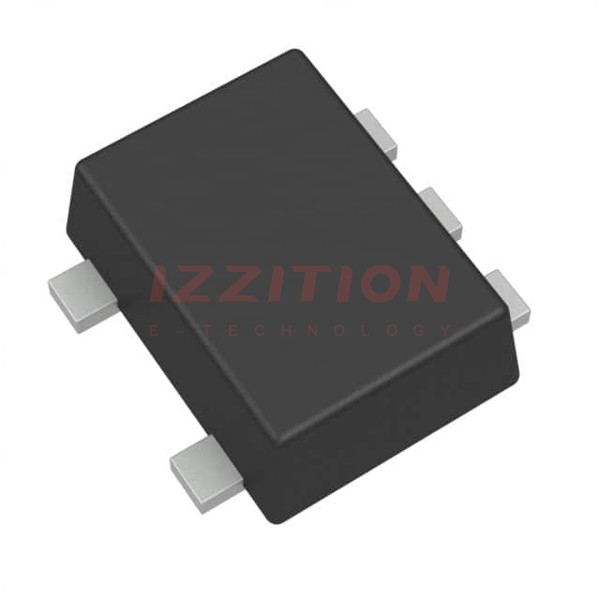

| Part Number | SN74AHC1G04DRLR | SN74AHC1G08DRLR | SN74AHC1G14DRLR | SN74AHC1GU04DRLR | SN74AHC1G00DRLR | SN74AHC1G02DRLR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | Inverter | AND Gate | Inverter | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 2 | 1 | 1 | 2 | 2 |
| Features | - | - | Schmitt Trigger | - | - | - |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.9V ~ 1.65V | 0.3V ~ 1.1V | 0.5V ~ 1.65V | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 2.2V ~ 3.85V | 1.7V ~ 4.4V | 1.5V ~ 3.85V | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 10.6ns @ 5V, 50pF | 7ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-5 | SOT-5 | SOT-5 | SOT-5 | SOT-5 | SOT-5 |
| Package / Case | SOT-553 | SOT-553 | SOT-553 | SOT-553 | SOT-553 | SOT-553 |
