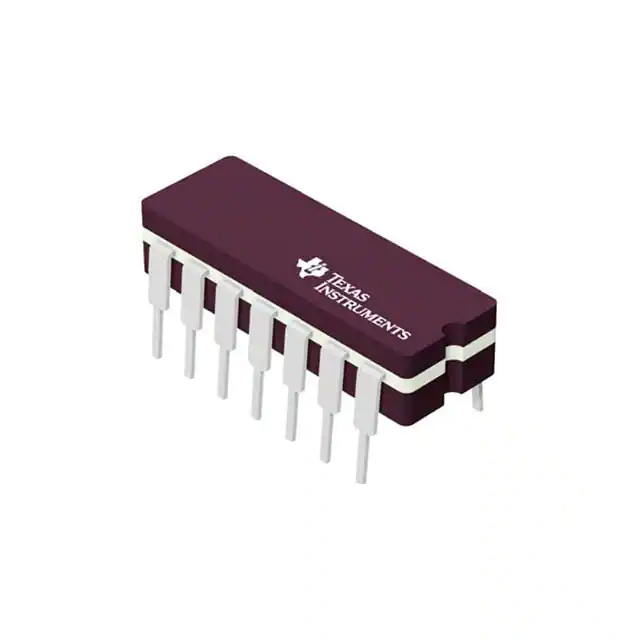

| Part Number | SN74AC86N | SN74AC86NS | SN74AC86D |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Logic Type | XOR (Exclusive OR) | - | XOR (Exclusive OR) |
| Number of Circuits | 4 | - | 4 |
| Number of Inputs | 2 | - | 2 |
| Features | - | - | - |
| Voltage - Supply | 2V ~ 6V | - | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | - | 2 µA |
| Current - Output High, Low | 24mA, 24mA | - | 24mA, 24mA |
| Logic Level - Low | 0.9V ~ 1.65V | - | 0.9V ~ 1.65V |
| Logic Level - High | 2.1V ~ 3.85V | - | 2.1V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 8.5ns @ 5V, 50pF | - | 8.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C |
| Mounting Type | Through Hole | - | Surface Mount |
| Supplier Device Package | 14-PDIP | - | 14-SOIC |
| Package / Case | 14-DIP (0.300", 7.62mm) | - | 14-SOIC (0.154", 3.90mm Width) |
