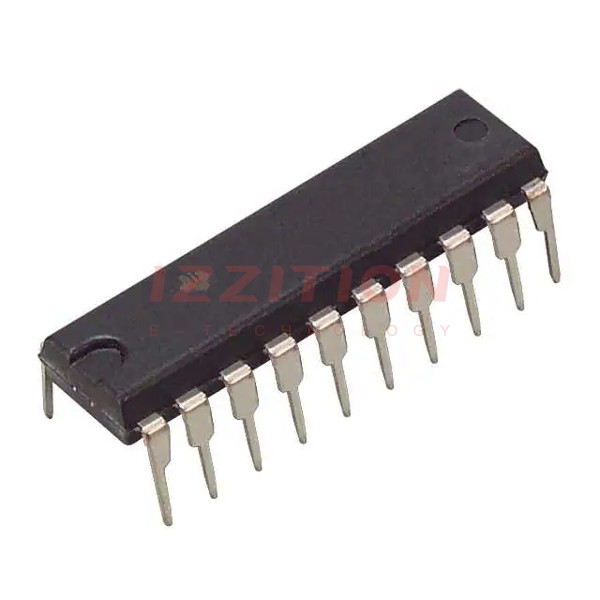

| Part Number | SN74AC574N | SN74AC574NS | SN74AC74N | SN74ACT74N | SN74ACT574N | SN74AC374N | SN74AC534N | SN74AC564N |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Function | Standard | - | Set(Preset) and Reset | Set(Preset) and Reset | Standard | Standard | Standard | Standard |
| Type | D-Type | - | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | - | Complementary | Complementary | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Inverted | Tri-State, Inverted |
| Number of Elements | 1 | - | 2 | 2 | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 8 | - | 1 | 1 | 8 | 8 | 8 | 8 |
| Clock Frequency | 153 MHz | - | 160 MHz | 210 MHz | 110 MHz | 155 MHz | 150 MHz | 95 MHz |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF | - | 10ns @ 5V, 50pF | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF | 9.5ns @ 5V, 50pF | 10.5ns @ 5V, 50pF | 10.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge | - | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 24mA, 24mA | - | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 2V ~ 6V | - | 2V ~ 6V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA | - | 2 µA | 2 µA | 4 µA | 4 µA | 4 µA | 4 µA |
| Input Capacitance | 4.5 pF | - | 3 pF | 3 pF | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 20-PDIP | - | 14-PDIP | 14-PDIP | 20-PDIP | 20-PDIP | 20-PDIP | 20-PDIP |
| Package / Case | 20-DIP (0.300", 7.62mm) | - | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
