Please send RFQ , we will respond immediately.

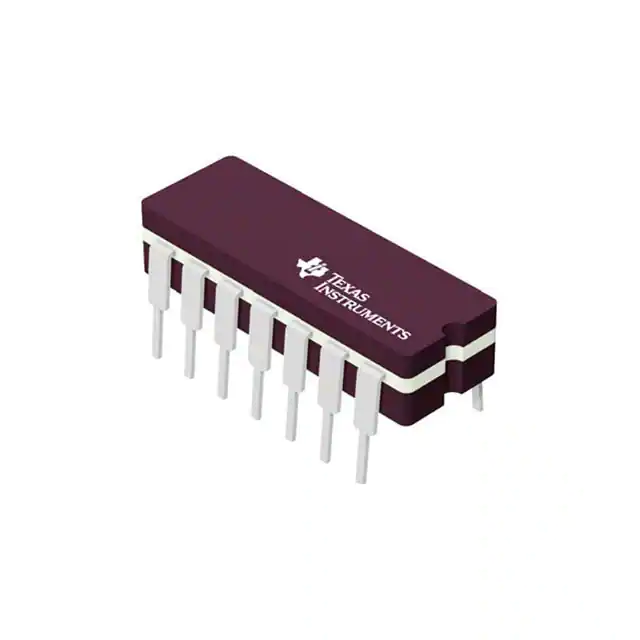

| Part Number | SN74AC00NG4 | SN74AC04NG4 | SN74AC08NG4 | SN74AC00NE4 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Active |
| Logic Type | NAND Gate | Inverter | AND Gate | - |
| Number of Circuits | 4 | 6 | 4 | - |
| Number of Inputs | 2 | 1 | 2 | - |
| Features | - | - | - | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | - |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | - |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | - |
| Logic Level - Low | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | - |
| Logic Level - High | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V | - |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF | 7ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | - |
| Supplier Device Package | 14-PDIP | 14-PDIP | 14-PDIP | - |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | - |
