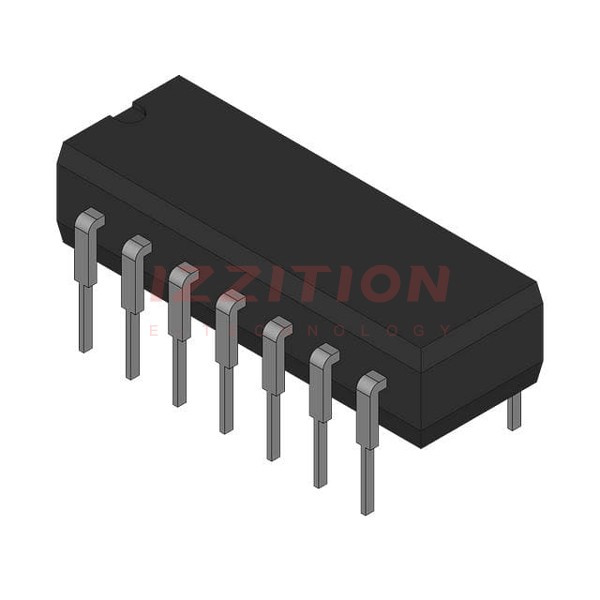

| Part Number | SN7432NE4 | SN7432NG4 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Discontinued at Digi-Key |
| Logic Type | - | OR Gate |
| Number of Circuits | - | 4 |
| Number of Inputs | - | 2 |
| Features | - | - |
| Voltage - Supply | - | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - | - |
| Current - Output High, Low | - | 800µA, 16mA |
| Logic Level - Low | - | 0.8V |
| Logic Level - High | - | 2V |
| Max Propagation Delay @ V, Max CL | - | 22ns @ 5V, 15pF |
| Operating Temperature | - | 0°C ~ 70°C |
| Mounting Type | - | Through Hole |
| Supplier Device Package | - | 14-PDIP |
| Package / Case | - | 14-DIP (0.300", 7.62mm) |
