Please send RFQ , we will respond immediately.

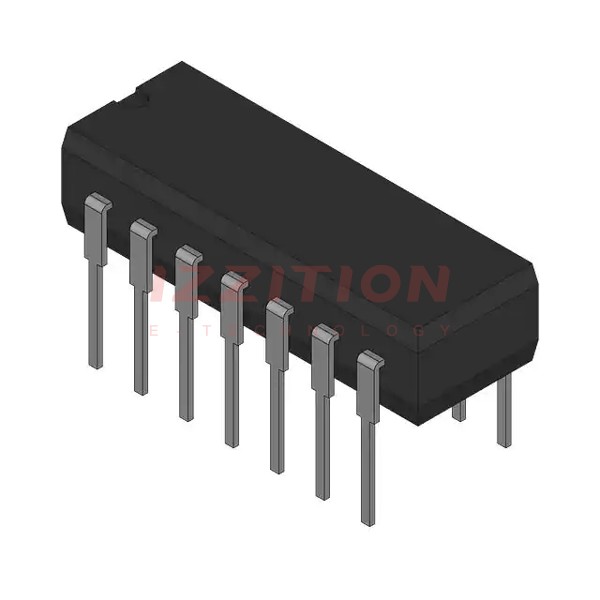

| Part Number | SN7412N | SN7416N | SN7432N | SN7414N | SN7402N | SN7410N | SN74128N | SN7412J |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Logic Type | - | Inverter | OR Gate | Inverter | NOR Gate | NAND Gate | NOR Gate | - |
| Number of Circuits | - | 6 | 4 | 6 | 4 | 3 | 4 | - |
| Number of Inputs | - | 1 | 2 | 1 | 2 | 3 | 2 | - |
| Features | - | Open Collector | - | Schmitt Trigger | - | - | - | - |
| Voltage - Supply | - | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - |
| Current - Quiescent (Max) | - | - | 22 mA | - | - | - | 21 mA | - |
| Current - Output High, Low | - | -, 40mA | 800µA, 16mA | 800µA, 16mA | 400µA, 16mA | 400µA, 16mA | 42.4mA, 48mA | - |
| Logic Level - Low | - | 0.8V | 0.8V | 0.6V | 0.8V | 0.8V | 0.8V | - |
| Logic Level - High | - | 2V | 2V | 2V | 2V | 2V | 2V | - |
| Max Propagation Delay @ V, Max CL | - | 23ns @ 5V, 15pF | 22ns @ 5V, 15pF | 22ns @ 5V, 15pF | 22ns @ 5V, 15pF | 22ns @ 5V, 15pF | 18ns @ 5V, 150pF | - |
| Operating Temperature | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - |
| Mounting Type | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - |
| Supplier Device Package | - | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | - |
| Package / Case | - | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | - |
