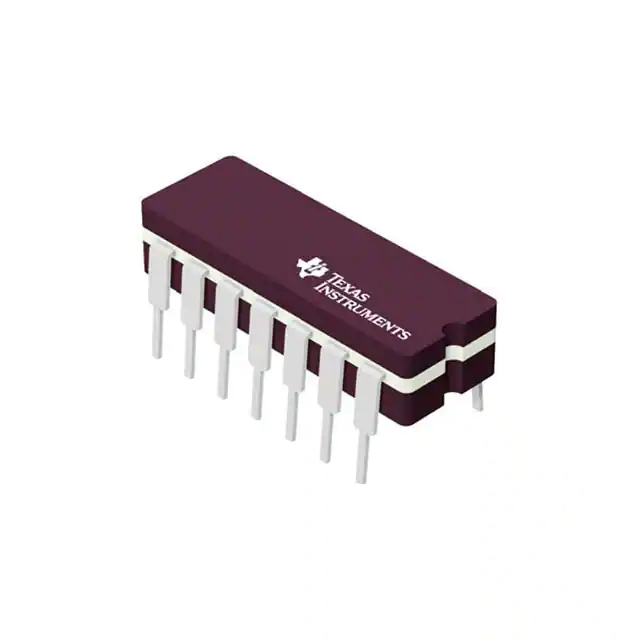

| Part Number | SN7404NG4 | SN7405NG4 | SN7406NG4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Logic Type | Inverter | Inverter | Inverter |
| Number of Circuits | 6 | 6 | 6 |
| Number of Inputs | 1 | 1 | 1 |
| Features | - | Open Collector | Open Collector |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - | - | - |
| Current - Output High, Low | 400µA, 16mA | -, 16mA | -, 40mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 22ns @ 5V, 15pF | 55ns @ 5V, 15pF | 23ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 14-PDIP | 14-PDIP | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
