Please send RFQ , we will respond immediately.

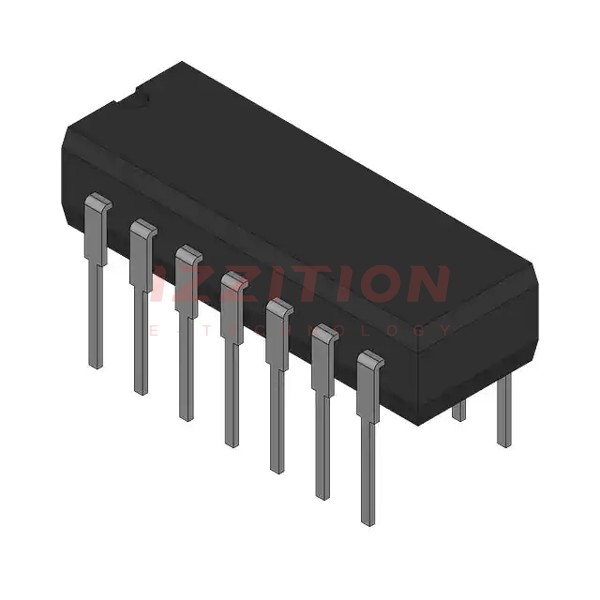

| Part Number | SN7401N | SN7401N3 | SN7405N | SN7402N | SN7404N | SN7406N | SN7400N |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | - | - | Inverter | NOR Gate | Inverter | Inverter | NAND Gate |
| Number of Circuits | - | - | 6 | 4 | 6 | 6 | 4 |
| Number of Inputs | - | - | 1 | 2 | 1 | 1 | 2 |
| Features | - | - | Open Collector | - | - | Open Collector | - |
| Voltage - Supply | - | - | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - | - | 12 mA | - | - | - | - |
| Current - Output High, Low | - | - | -, 16mA | 400µA, 16mA | 400µA, 16mA | -, 40mA | 400µA, 16mA |
| Logic Level - Low | - | - | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | - | - | 2V | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | - | - | 55ns @ 5V, 15pF | 22ns @ 5V, 15pF | 22ns @ 5V, 15pF | 23ns @ 5V, 15pF | 22ns @ 5V, 15pF |
| Operating Temperature | - | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | - | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP |
| Package / Case | - | - | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
