Texas Instruments-PT5105M - DC DC Converters Product Specifications and Latest Quotes

Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	10.5V
Voltage - Input (Max):	38V
Voltage - Output 1:	6.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	6 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	1.02" L x 1.00" W x 0.38" H (25.9mm x 25.4mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

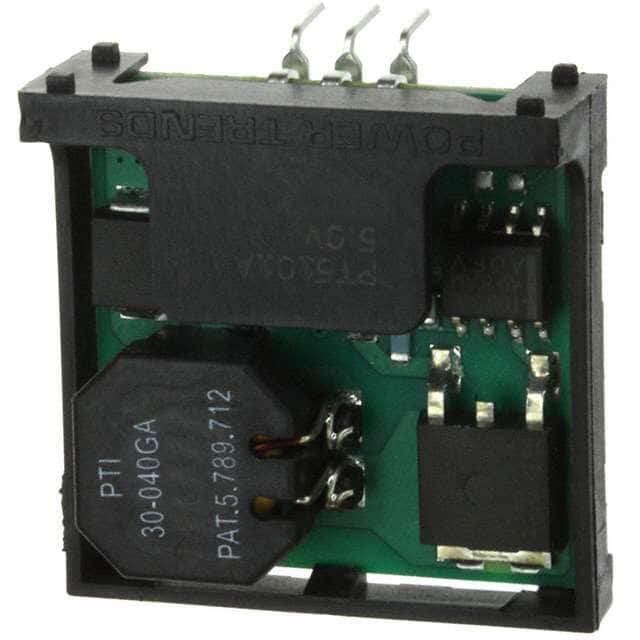

Texas Instruments PT5105M
