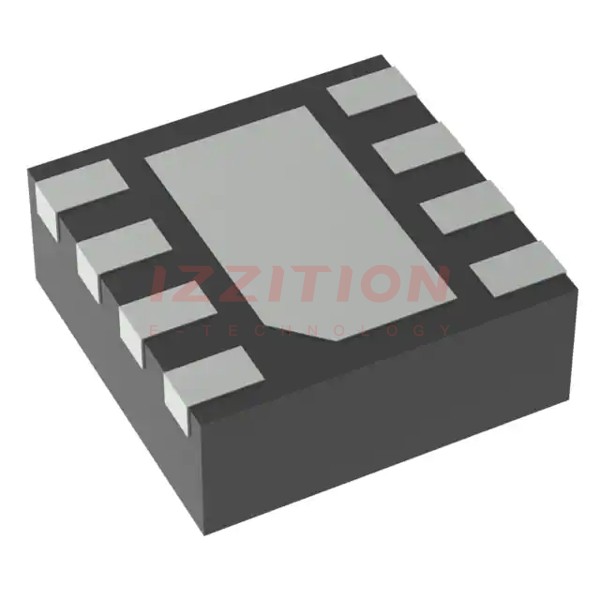

| Part Number | OPA859QDSGRQ1 | OPA855QDSGRQ1 | OPA858QDSGRQ1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Amplifier Type | J-FET | General Purpose | J-FET |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | Differential | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 1150V/µs | 2750V/µs | 2000V/µs |
| Gain Bandwidth Product | 900 MHz | 8 GHz | 5.5 GHz |
| -3db Bandwidth | 1.8 GHz | 2.5 GHz | 1.2 GHz |
| Current - Input Bias | 0.5 pA | 12 µA | 0.4 pA |
| Voltage - Input Offset | 900 mV | 200 mV | 800 mV |
| Current - Supply | 21mA | 17.8mA | 21mA |
| Current - Output / Channel | 105 mA | 105 mA | 105 mA |
| Voltage - Supply Span (Min) | 3.3 V | 3.3 V | 3.3 V |
| Voltage - Supply Span (Max) | 5.25 V | 5.25 V | 5.25 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) |
