| Part Number | OPA551FAKTWTG3 | OPA552FAKTWTG3 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Amplifier Type | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 |
| Output Type | - | - |
| Slew Rate | 15V/µs | 24V/µs |
| Gain Bandwidth Product | 3 MHz | 12 MHz |
| -3db Bandwidth | - | - |
| Current - Input Bias | 20 pA | 20 pA |
| Voltage - Input Offset | 1 mV | 1 mV |
| Current - Supply | 7mA | 7mA |
| Current - Output / Channel | 200 mA | 200 mA |
| Voltage - Supply Span (Min) | 8 V | 8 V |
| Voltage - Supply Span (Max) | 60 V | 60 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

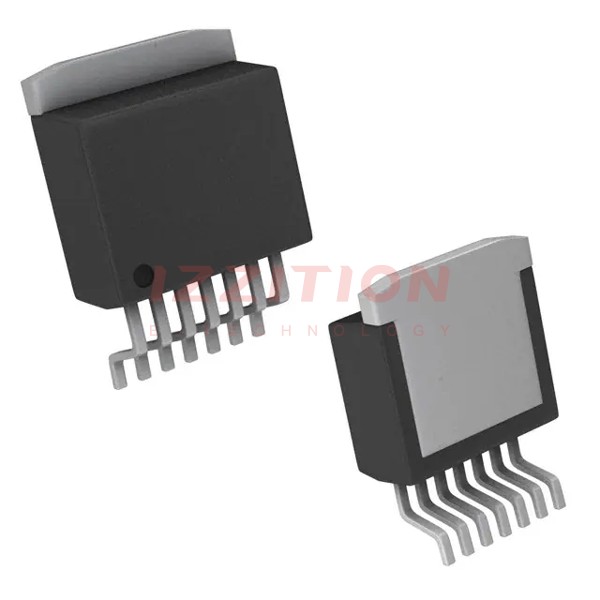

| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | DDPAK/TO-263-7 | DDPAK/TO-263-7 |
