Please send RFQ , we will respond immediately.

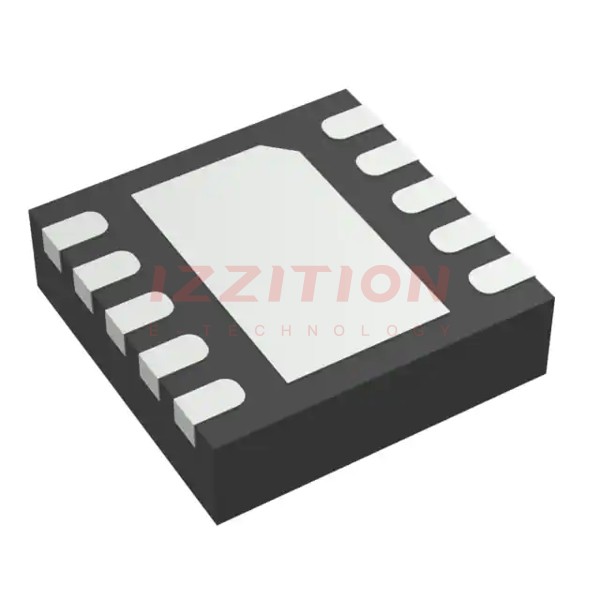

| Part Number | OPA2373AIDRCT | OPA2373AIDRCR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Amplifier Type | CMOS | CMOS |
| Number of Circuits | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 5V/µs | 5V/µs |
| Gain Bandwidth Product | 6.5 MHz | 6.5 MHz |
| -3db Bandwidth | - | - |
| Current - Input Bias | 0.5 pA | 0.5 pA |
| Voltage - Input Offset | 1 mV | 1 mV |
| Current - Supply | 585µA (x2 Channels) | 585µA (x2 Channels) |
| Current - Output / Channel | 5 mA | 5 mA |
| Voltage - Supply Span (Min) | 2.7 V | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) | 10-VSON (3x3) |
