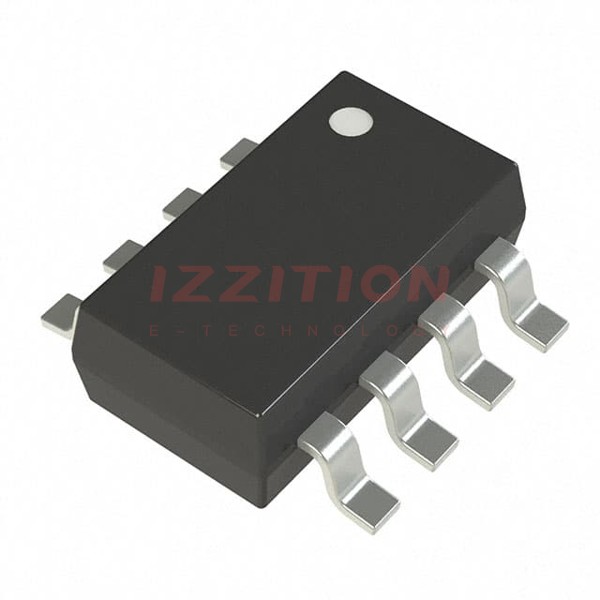

| Part Number | OPA2349EA/250 | OPA234EA/250 | OPA2340EA/250 | OPA2342EA/250 | OPA2343EA/250 | OPA2344EA/250 | OPA2345EA/250 | OPA2347EA/250 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Active | Active | Active | Active | Active | Active |
| Amplifier Type | CMOS | General Purpose | CMOS | CMOS | CMOS | CMOS | CMOS | General Purpose |
| Number of Circuits | 2 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | - | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.02V/µs | 0.2V/µs | 6V/µs | 1V/µs | 6V/µs | 0.8V/µs | 2V/µs | 0.17V/µs |
| Gain Bandwidth Product | 70 kHz | 350 kHz | 5.5 MHz | 1 MHz | 5.5 MHz | 1 MHz | 3 MHz | 350 kHz |
| -3db Bandwidth | - | - | - | - | - | - | - | - |
| Current - Input Bias | 0.5 pA | 12 nA | 0.2 pA | 0.2 pA | 0.2 pA | 0.2 pA | 0.2 pA | 0.5 pA |
| Voltage - Input Offset | 2 mV | 70 µV | 150 µV | 1 mV | 2 mV | 200 µV | 200 µV | 2 mV |
| Current - Supply | 1µA (x2 Channels) | 275µA | 750µA (x2 Channels) | 150µA (x2 Channels) | 850µA (x2 Channels) | 150µA (x2 Channels) | 150µA (x2 Channels) | 20µA (x2 Channels) |
| Current - Output / Channel | 8 mA | 22 mA | 50 mA | 15 mA | 50 mA | 15 mA | 15 mA | 17 mA |
| Voltage - Supply Span (Min) | 1.8 V | 2.7 V | 2.5 V | 2.7 V | 2.5 V | 2.5 V | 2.5 V | 2.3 V |
| Voltage - Supply Span (Max) | 5.5 V | 36 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -55°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-8 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | SOT-23-8 |
| Supplier Device Package | SOT-23-8 | 8-VSSOP | 8-VSSOP | 8-VSSOP | 8-VSSOP | 8-VSSOP | 8-VSSOP | SOT-23-8 |
