| Part Number | OPA2347YEDT | OPA2347YZDT | OPA2347YEDR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.17V/µs | 0.17V/µs | 0.17V/µs |
| Gain Bandwidth Product | 350 kHz | 350 kHz | 350 kHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 0.5 pA | 0.5 pA | 0.5 pA |
| Voltage - Input Offset | 2 mV | 2 mV | 2 mV |
| Current - Supply | 20µA (x2 Channels) | 20µA (x2 Channels) | 20µA (x2 Channels) |
| Current - Output / Channel | 17 mA | 17 mA | 17 mA |
| Voltage - Supply Span (Min) | 2.3 V | 2.3 V | 2.3 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

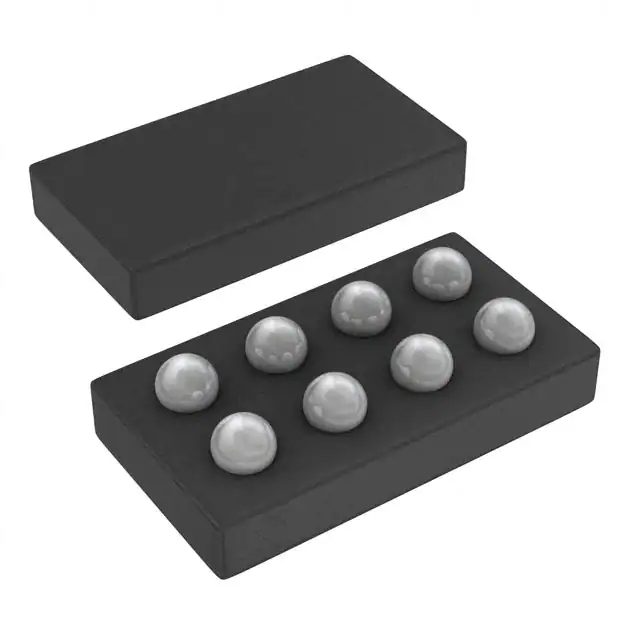

| Package / Case | 8-XFBGA, DSBGA | 8-XFBGA, DSBGA | 8-XFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA (1.9x0.9) | 8-DSBGA (1.9x0.9) | 8-DSBGA (1.9x0.9) |
