OPA2337EA/250G4
  • Share:

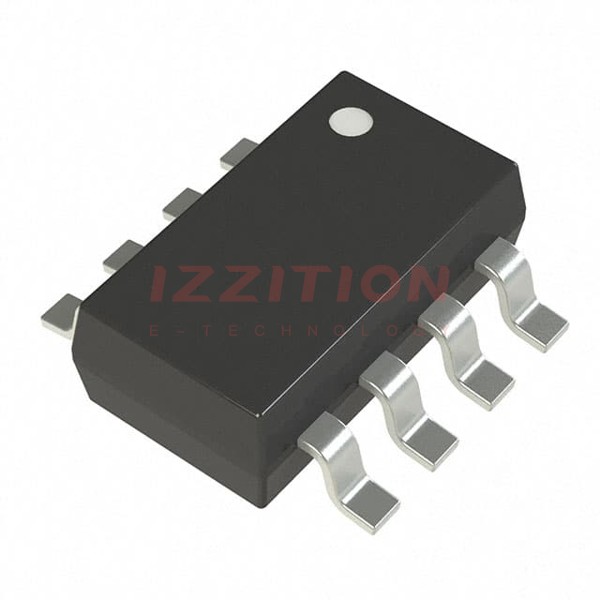

Texas Instruments OPA2337EA/250G4

Manufacturer No:
OPA2337EA/250G4
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
OPA2337EA/250G4 Datasheet
ECAD Model:
-
Description:
IC CMOS 2 CIRCUIT SOT23-8
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Amplifier Type:CMOS
Number of Circuits:2
Output Type:Rail-to-Rail
Slew Rate:1.2V/µs
Gain Bandwidth Product:3 MHz
-3db Bandwidth:-
Current - Input Bias:0.2 pA
Voltage - Input Offset:500 µV
Current - Supply:525µA (x2 Channels)
Current - Output / Channel:9 mA
Voltage - Supply Span (Min):2.7 V
Voltage - Supply Span (Max):5.5 V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:SOT-23-8
Supplier Device Package:SOT-23-8
0 Remaining View Similar

In Stock

-
516

Please send RFQ , we will respond immediately.

Similar Products

Part Number OPA2337EA/250G4 OPA2347EA/250G4   OPA2336EA/250G4
Manufacturer Texas Instruments Texas Instruments Texas Instruments
Product Status Discontinued at Digi-Key Discontinued at Digi-Key Discontinued at Digi-Key
Amplifier Type CMOS General Purpose CMOS
Number of Circuits 2 2 2
Output Type Rail-to-Rail Rail-to-Rail Rail-to-Rail
Slew Rate 1.2V/µs 0.17V/µs 0.03V/µs
Gain Bandwidth Product 3 MHz 350 kHz 100 kHz
-3db Bandwidth - - -
Current - Input Bias 0.2 pA 0.5 pA 1 pA
Voltage - Input Offset 500 µV 2 mV 60 µV
Current - Supply 525µA (x2 Channels) 20µA (x2 Channels) 20µA (x2 Channels)
Current - Output / Channel 9 mA 17 mA 5 mA
Voltage - Supply Span (Min) 2.7 V 2.3 V 2.3 V
Voltage - Supply Span (Max) 5.5 V 5.5 V 5.5 V
Operating Temperature -40°C ~ 85°C -55°C ~ 125°C -40°C ~ 85°C
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case SOT-23-8 SOT-23-8 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package SOT-23-8 SOT-23-8 8-VSSOP
