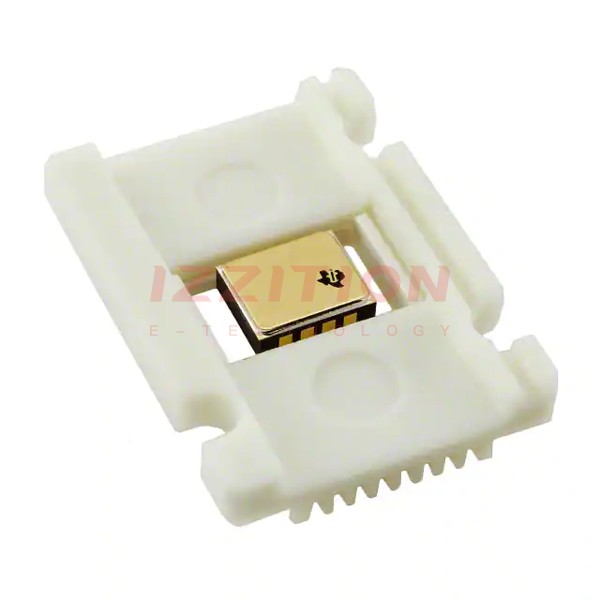

| Part Number | OPA2333SHKJ | OPA2333SHKQ |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Amplifier Type | CMOS, Zero-Drift | CMOS, Zero-Drift |
| Number of Circuits | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.16V/µs | 0.16V/µs |
| Gain Bandwidth Product | 350 kHz | 350 kHz |
| -3db Bandwidth | - | - |
| Current - Input Bias | 70 pA | 70 pA |
| Voltage - Input Offset | 2 µV | 2 µV |
| Current - Supply | 17µA (x2 Channels) | 17µA (x2 Channels) |
| Current - Output / Channel | 5 mA | 5 mA |
| Voltage - Supply Span (Min) | 1.8 V | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V |
| Operating Temperature | -55°C ~ 210°C | -55°C ~ 210°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-CFlatPack | 8-CSOIC (0.220", 5.65mm Width) |
| Supplier Device Package | 8-CFP | 8-CFP |
