| Part Number | OPA2111BM | OPA2111SM | OPA2111KM | OPA2111AM |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Burr Brown | Texas Instruments | Burr Brown |
| Product Status | Obsolete | Active | Obsolete | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 | 2 | 2 |
| Output Type | - | - | - | - |
| Slew Rate | 2V/µs | 2V/µs | 2V/µs | 2V/µs |
| Gain Bandwidth Product | 2 MHz | 2 MHz | 2 MHz | 2 MHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 1.2 pA | 2 pA | 3 pA | 2 pA |
| Voltage - Input Offset | 50 µV | 100 µV | 300 µV | 100 µV |
| Current - Supply | 5mA (x2 Channels) | 5mA (x2 Channels) | 5mA (x2 Channels) | 5mA (x2 Channels) |
| Current - Output / Channel | 10 mA | 10 mA | 10 mA | 10 mA |
| Voltage - Supply Span (Min) | 10 V | 10 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | -25°C ~ 85°C | -55°C ~ 125°C | 0°C ~ 70°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

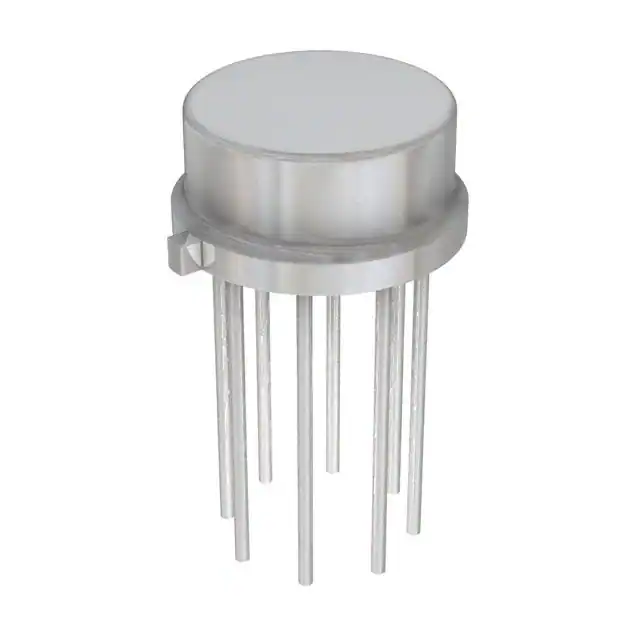

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 |
