| Part Number | OPA128LM | OPA128SM | OPA128JM | OPA128KM |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - |
| Slew Rate | 3V/µs | 3V/µs | 3V/µs | 3V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 0.04 pA | 0.075 pA | 0.15 pA | 0.075 pA |
| Voltage - Input Offset | 140 µV | 140 µV | 260 µV | 140 µV |
| Current - Supply | 900µA | 900µA | 900µA | 900µA |
| Current - Output / Channel | 10 mA | 10 mA | 10 mA | 10 mA |
| Voltage - Supply Span (Min) | 10 V | 10 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | 0°C ~ 70°C | -55°C ~ 125°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

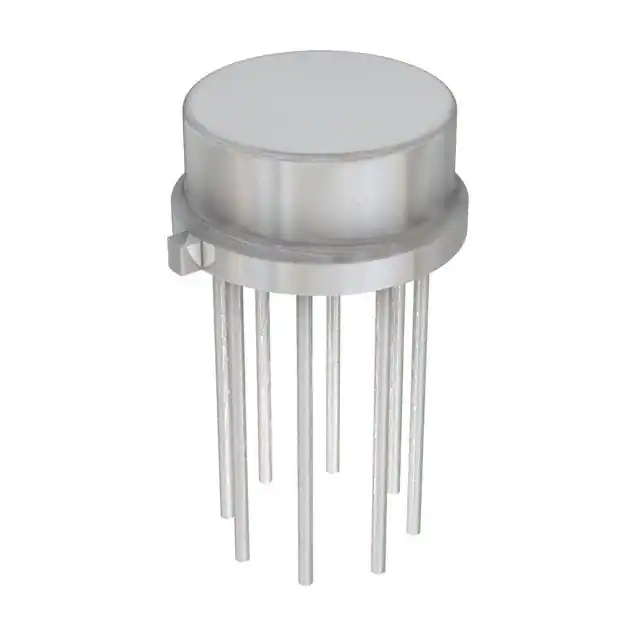

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 |
