| Part Number | MSP430FG4616IZQWT | MSP430FG4617IZQWT | MSP430FG4618IZQWT | MSP430FG4619IZQWT | MSP430FG4616IZQW | MSP430FG4616IZQWR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | MSP430 CPUX | MSP430 CPUX | MSP430 CPUX | MSP430 CPUX | MSP430 CPUX | MSP430 CPUX |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz |
| Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART | I²C, IrDA, LINbus, SCI, SPI, UART/USART | I²C, IrDA, LINbus, SCI, SPI, UART/USART | I²C, IrDA, LINbus, SCI, SPI, UART/USART | I²C, IrDA, LINbus, SCI, SPI, UART/USART | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 80 | 80 | 80 | 80 | 80 | 80 |
| Program Memory Size | 92KB (92K x 8 + 256B) | 92KB (92K x 8 + 256B) | 116KB (116K x 8 + 256B) | 120KB (120K x 8 + 256B) | 92KB (92K x 8 + 256B) | 92KB (92K x 8 + 256B) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 4K x 8 | 8K x 8 | 8K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 12x12b; D/A 2x12b | A/D 12x12b; D/A 2x12b | A/D 12x12b; D/A 2x12b | A/D 12x12b; D/A 2x12b | A/D 12x12b; D/A 2x12b | A/D 12x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

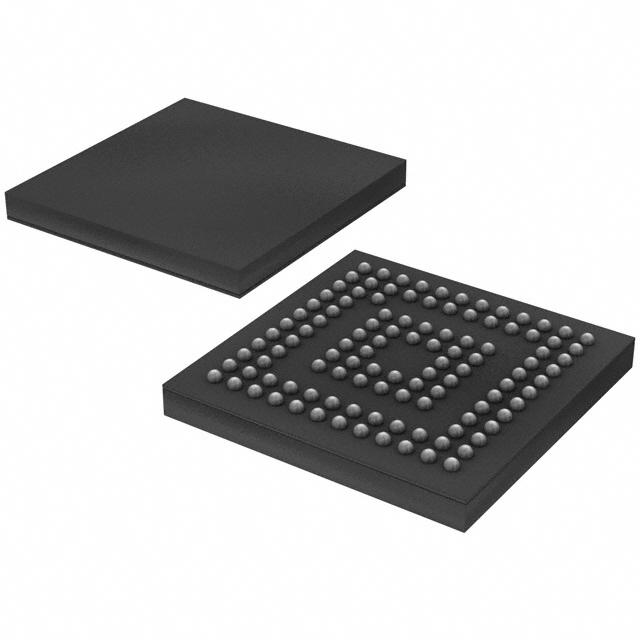

| Package / Case | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA |
| Supplier Device Package | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) |
