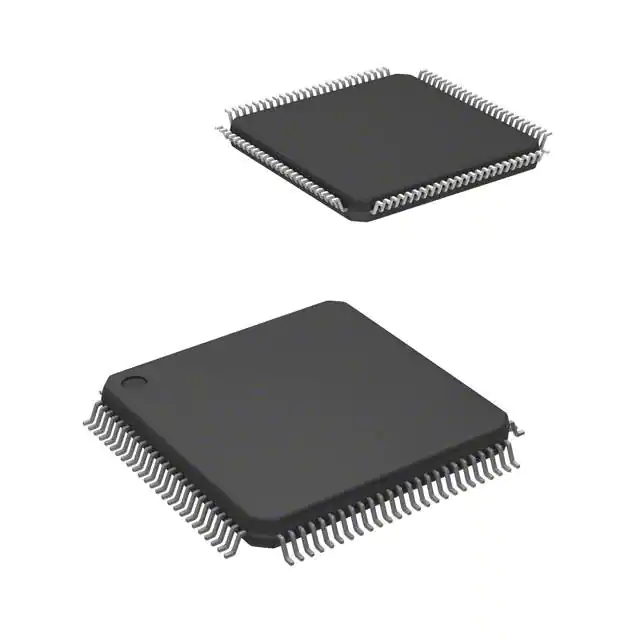

| Part Number | MSP430F6745IPZR | MSP430F6765IPZR | MSP430F6747IPZR | MSP430F6746IPZR | MSP430F6748IPZR | MSP430F6749IPZR | MSP430F6725IPZR | MSP430F6735IPZR | MSP430F67451IPZR | MSP430F6745AIPZR | MSP430F6745IPZ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Active | Active |
| Core Processor | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SCI, SPI, UART/USART | I²C, IrDA, LINbus, SCI, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 6x24b Sigma Delta Converter | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter |
| Number of I/O | 62 | 62 | 62 | 62 | 62 | 62 | 72 | 72 | 62 | 62 | 62 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 16K x 8 | 16K x 8 | 32K x 8 | 16K x 8 | 16K x 8 | 32K x 8 | 4K x 8 | 4K x 8 | 16K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b, 2x24b | A/D 8x10b, 3x24b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) |
