Please send RFQ , we will respond immediately.
| Part Number | MSP430F5635IZQWR | MSP430F5636IZQWR | MSP430F5638IZQWR | MSP430F6635IZQWR | MSP430F5637IZQWR | MSP430F5635IZQWT | MSP430F5630IZQWR | MSP430F5631IZQWR | MSP430F5632IZQWR | MSP430F5633IZQWR | MSP430F5634IZQWR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 | MSP430 CPUXV2 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB | I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 |
| Program Memory Size | 256KB (256K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 192KB (192K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 192KB (192K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 192KB (192K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 18K x 8 | 18K x 8 | 18K x 8 | 18K x 8 | 18K x 8 | 18K x 8 | 18K x 8 | 18K x 8 | 18K x 8 | 18K x 8 | 18K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b | - | - | - | A/D 16x12b | A/D 16x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

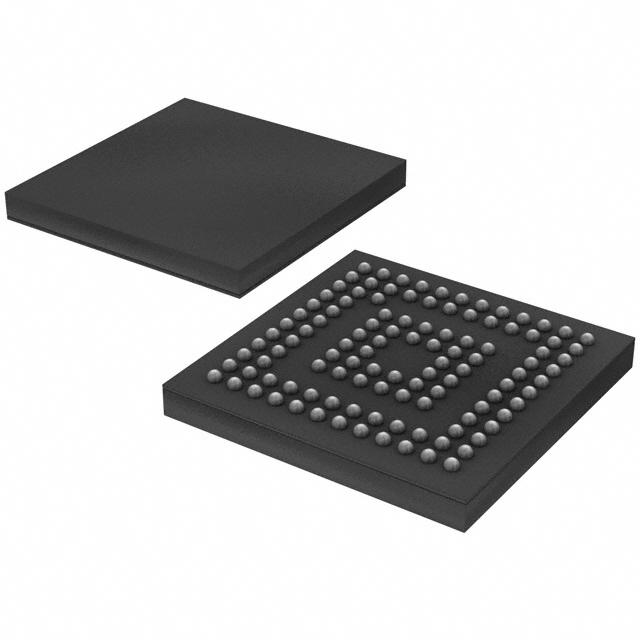

| Package / Case | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA | 113-VFBGA |
| Supplier Device Package | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) | 113-BGA Microstar Junior (7x7) |
