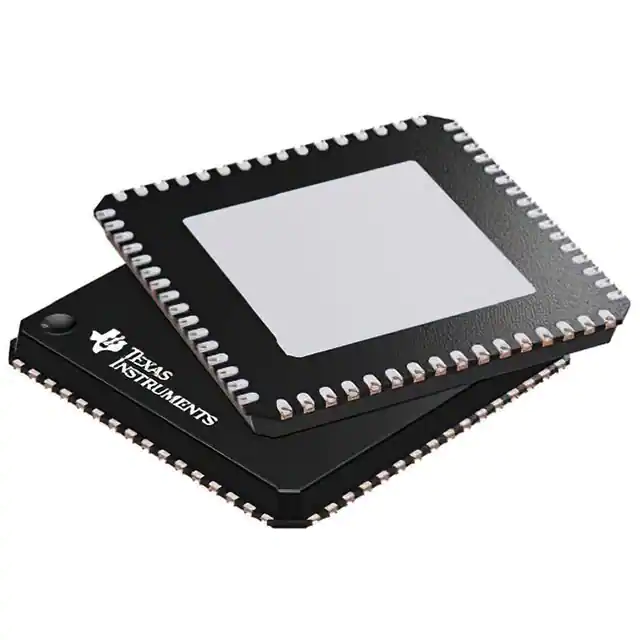

| Part Number | MSP430F147IRTDR | MSP430F148IRTDR | MSP430F149IRTDR | MSP430F147IRTDT | MSP430F157IRTDR | MSP430F167IRTDR | MSP430F1471IRTDR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete |
| Core Processor | MSP430 CPU16 | MSP430 CPU16 | MSP430 CPU16 | MSP430 CPU16 | MSP430 CPU16 | MSP430 CPU16 | MSP430 CPU16 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz |
| Connectivity | SPI, UART/USART | SPI, UART/USART | SPI, UART/USART | SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | SPI, UART/USART |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Program Memory Size | 32KB (32K x 8 + 256B) | 48KB (48K x 8 + 256B) | 60KB (60K x 8 + 256B) | 32KB (32K x 8 + 256B) | 32KB (32K x 8 + 256B) | 32KB (32K x 8 + 256B) | 32KB (32K x 8 + 256B) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 1K x 8 | 2K x 8 | 2K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b; D/A 2x12b | A/D 8x12b; D/A 2x12b | Slope A/D |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) | 64-VQFN (9x9) | 64-VQFN (9x9) | 64-VQFN (9x9) | 64-VQFN (9x9) | 64-VQFN (9x9) | 64-VQFN (9x9) |
