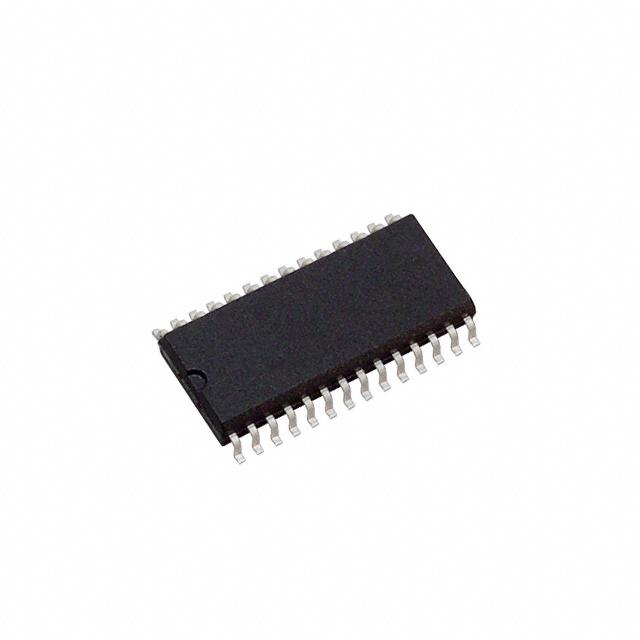

| Part Number | MPC506AU | MPC507AU | MPC509AU | MPC508AU | MPC506AP |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Burr Brown |
| Product Status | Active | Active | Active | Active | Obsolete |
| Switch Circuit | - | - | SP4T | - | - |
| Multiplexer/Demultiplexer Circuit | 16:1 | 8:1 | 4:1 | 8:1 | 16:1 |
| Number of Circuits | 1 | 2 | 2 | 1 | 1 |
| On-State Resistance (Max) | 1.5kOhm | 1.5kOhm | 1.5kOhm | 1.5kOhm | 1.5kOhm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - |
| Voltage - Supply, Single (V+) | - | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V | ±5V ~ 22V | ±5V ~ 22V | ±5V ~ 22V | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 200ns, 250ns (Typ) | 200ns, 250ns (Typ) | 200ns, 250ns (Typ) | 200ns, 250ns (Typ) | 200ns, 250ns (Typ) |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 50pF | 5pF, 25pF | 5pF, 12pF | 5pF, 25pF | 5pF, 50pF |
| Current - Leakage (IS(off)) (Max) | 500pA (Typ) | 500pA (Typ) | 500pA (Typ) | 500pA (Typ) | 500pA (Typ) |
| Crosstalk | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-SOIC | 28-SOIC | 16-SOIC | 16-SOIC | 28-PDIP |
