| Part Number | LP8866QDCPRQ1 | LP8866SQDCPRQ1 | LP8864QDCPRQ1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Type | DC DC Controller | DC DC Controller | DC DC Controller |
| Topology | SEPIC, Step-Up (Boost) | SEPIC, Step-Up (Boost) | SEPIC, Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 6 | 6 | 4 |
| Voltage - Supply (Min) | 3V | 3V | 3V |
| Voltage - Supply (Max) | 48V | 48V | 48V |
| Voltage - Output | 0V ~ 48V | 0V ~ 48V | 0V ~ 48V |
| Current - Output / Channel | 200mA | 150mA | 200mA |
| Frequency | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz |
| Dimming | PWM | PWM | PWM |
| Applications | Automotive, Backlight | Automotive, Backlight | Automotive, Backlight |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

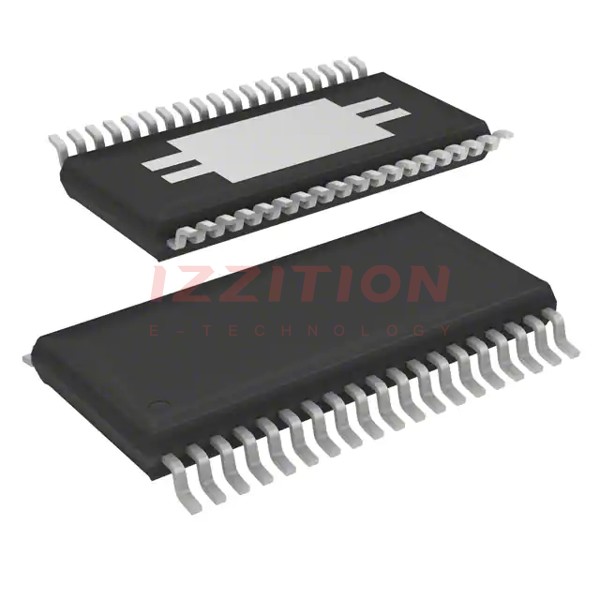

| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 38-HTSSOP | 38-HTSSOP | 38-HTSSOP |
