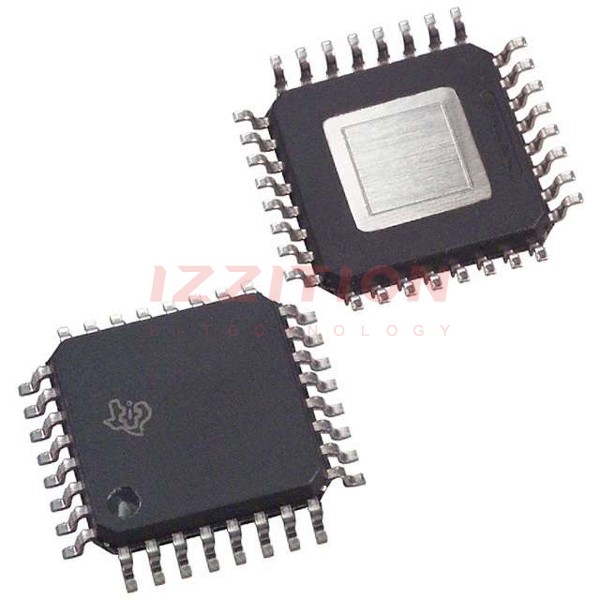

| Part Number | LP8860EQVFPRQ1 | LP8860LQVFPRQ1 | LP8860JQVFPRQ1 | LP8860HQVFPRQ1 | LP8860NQVFPRQ1 | LP8860RQVFPRQ1 | LP8860AQVFPRQ1 | LP8860BQVFPRQ1 | LP8860CQVFPRQ1 | LP8860DQVFPRQ1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | No | No | No | No | No | No | No | No | No | No |
| Number of Outputs | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Voltage - Supply (Min) | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3V |
| Voltage - Supply (Max) | 48V | 48V | 48V | 48V | 48V | 48V | 48V | 48V | 48V | 48V |
| Voltage - Output | 48V | 48V | 48V | 48V | 48V | 48V | 48V | 48V | 48V | 48V |
| Current - Output / Channel | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Frequency | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz |
| Dimming | PWM | PWM | PWM | PWM | PWM | PWM | PWM | PWM | PWM | PWM |
| Applications | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-PowerLQFP | 32-PowerLQFP | 32-PowerLQFP | 32-PowerLQFP | 32-PowerLQFP | 32-PowerLQFP | 32-PowerLQFP | 32-PowerLQFP | 32-PowerLQFP | 32-PowerLQFP |
| Supplier Device Package | 32-HLQFP (7x7) | 32-HLQFP (7x7) | 32-HLQFP (7x7) | 32-HLQFP (7x7) | 32-HLQFP (7x7) | 32-HLQFP (7x7) | 32-HLQFP (7x7) | 32-HLQFP (7x7) | 32-HLQFP (7x7) | 32-HLQFP (7x7) |
