Please send RFQ , we will respond immediately.
| Part Number | LP875650RNFTQ1 | LP87565CRNFTQ1 | LP875610RNFTQ1 | LP875620RNFTQ1 | LP875630RNFTQ1 | LP875640RNFTQ1 | LP875650RNFRQ1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Voltage - Input (Min) | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V | 0.6V | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 3.36V | 3.36V | 3.36V | 3.36V | 3.36V | 3.36V | 3.36V |
| Current - Output | 16A | 16A | 16A | 16A | 16A | 16A | 16A |
| Frequency - Switching | 2MHz | 2MHz | 2MHz | 2MHz | 2MHz | 2MHz | 2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

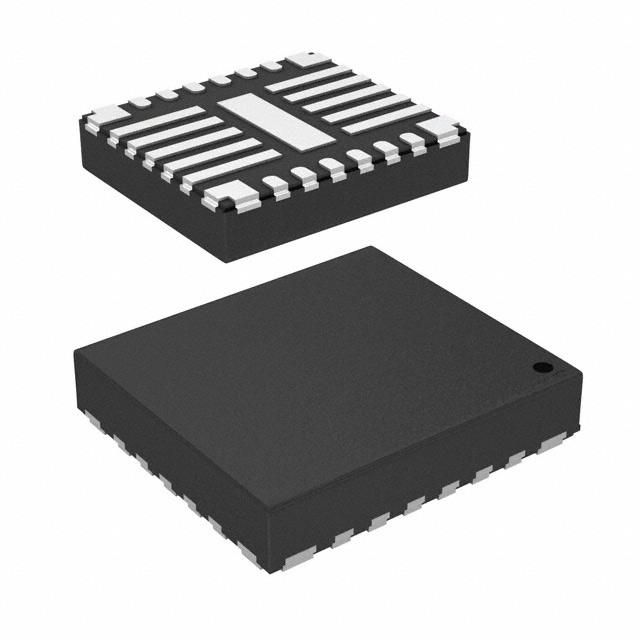

| Package / Case | 26-PowerVFQFN | 26-PowerVFQFN | 26-PowerVFQFN | 26-PowerVFQFN | 26-PowerVFQFN | 26-PowerVFQFN | 26-PowerVFQFN |
| Supplier Device Package | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) |
