| Part Number | LP87524BRNFRQ1 | LP87525BRNFRQ1 | LP87524BRNFTQ1 | LP87524JRNFRQ1 | LP87524PRNFRQ1 | LP87524TRNFRQ1 | LP87522BRNFRQ1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Programmable | Adjustable | Programmable | Programmable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 4 | 4 | 4 | 4 | 4 | 1 | 1 |
| Voltage - Input (Min) | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V | 0.6V | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 3.36V | 3.36V | 3.36V | 3.36V | 3.36V | 3.36V | 3.36V |
| Current - Output | 4A | 10A | 4A | 4A | 3A | 10A | 10A |
| Frequency - Switching | 4MHz | 2MHz | 4MHz | 4MHz | 2MHz, 3MHz, 4MHz | 2MHz | 2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | No | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

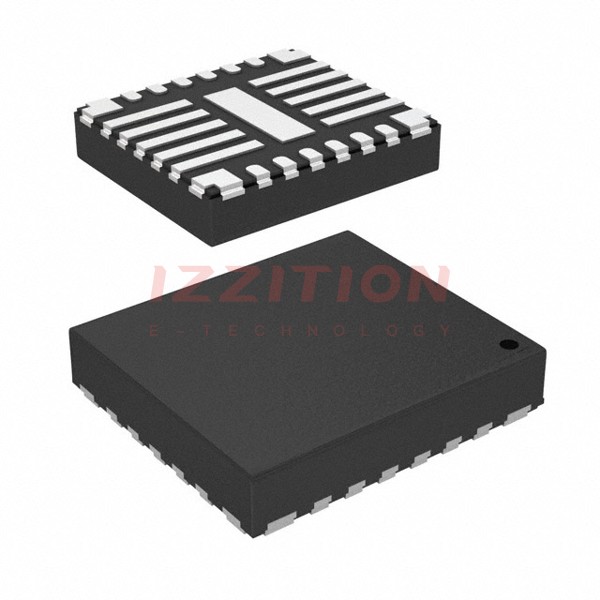

| Package / Case | 26-PowerVFQFN | 26-PowerVFQFN | 26-PowerVFQFN | 26-PowerVFQFN | 26-PowerVFQFN | 26-VFQFN Exposed Pad | 26-VFQFN Exposed Pad |
| Supplier Device Package | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) | 26-VQFN-HR (4.5x4) |
