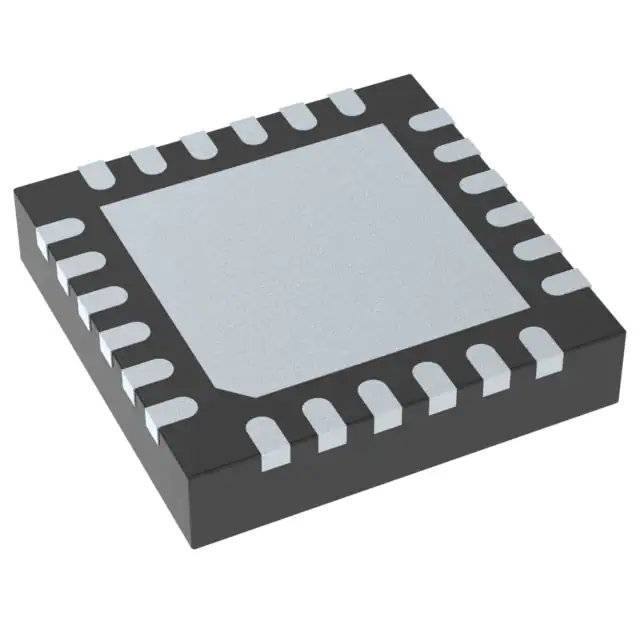

| Part Number | LP8556SQ-E09/NOPB | LP8556SQX-E09/NOPB | LP8556SQE-E09/NOPB | LP8556SQ-E00/NOPB | LP8556SQ-E08/NOPB |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 6 | 6 | 6 | 5 | 4 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 20V | 20V | 20V | 20V | 20V |
| Voltage - Output | 16V ~ 34.5V | 16V ~ 34.5V | 16V ~ 34.5V | 16V ~ 34.5V | 16V ~ 34.5V |
| Current - Output / Channel | 25mA | 25mA | 25mA | 25mA | 25mA |
| Frequency | 312kHz, 625kHz, 1250kHz | 312kHz, 625kHz, 1250kHz | 312kHz, 625kHz, 1250kHz | 312kHz, 625kHz, 1250kHz | 312kHz, 625kHz, 1250kHz |
| Dimming | PWM | PWM | PWM | PWM | PWM |
| Applications | Backlight | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) | 24-WQFN (4x4) | 24-WQFN (4x4) | 24-WQFN (4x4) | 24-WQFN (4x4) |
