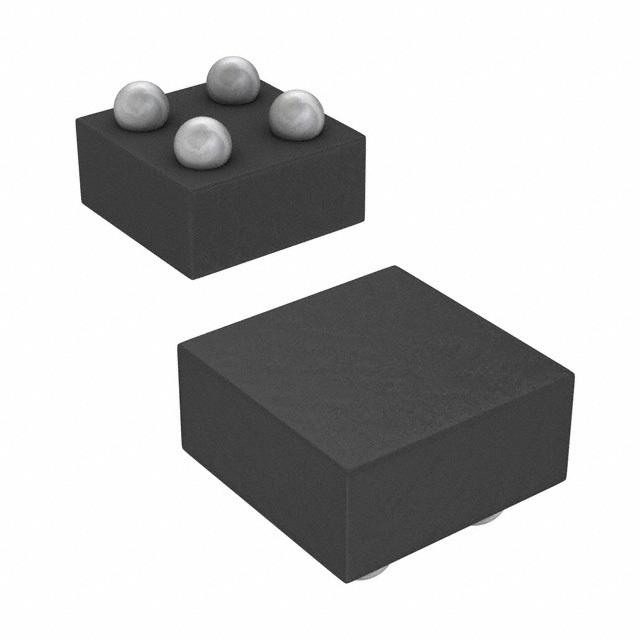

| Part Number | LP5910-1.1YKAR | LP5910-1.2YKAR | LP5910-1.8YKAR | LP5910-1.0YKAR | LP5910-1.1BYKAR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Min/Fixed) | 1.1V | 1.2V | 1.8V | 1V | 1.1V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | 0.3V @ 300mA | - | - |
| Current - Output | 300mA | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 25 µA | 25 µA | 25 µA | 25 µA | 25 µA |
| Current - Supply (Max) | 350 µA | 350 µA | 350 µA | 350 µA | 350 µA |
| PSRR | 80dB ~ 25dB (100Hz ~ 2MHz) | 80dB ~ 25dB (100Hz ~ 2MHz) | 80dB ~ 25dB (100Hz ~ 2MHz) | 80dB ~ 25dB (100Hz ~ 2MHz) | 80dB ~ 25dB (100Hz ~ 2MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA | 4-XFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA | 4-DSBGA | 4-DSBGA | 4-DSBGA | 4-DSBGA (0.71x0.71) |
