Please send RFQ , we will respond immediately.

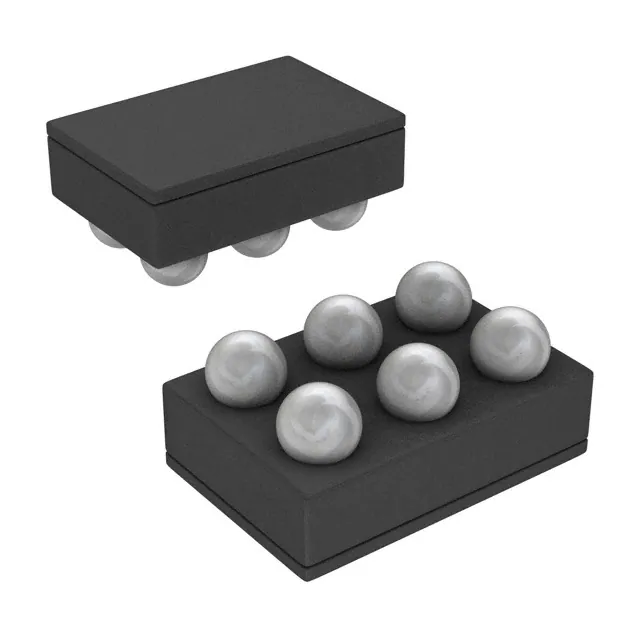

| Part Number | LP5522TM/NOPB | LP5523TM/NOPB | LP5522TMX/NOPB | LP5521TM/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Type | Linear | DC DC Regulator | Linear | DC DC Regulator |
| Topology | - | Switched Capacitor (Charge Pump) | - | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 9 | 1 | 3 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | - | - | - | 4.55V |
| Current - Output / Channel | 20mA | 25.5mA | 20mA | 25.5mA |
| Frequency | - | - | - | 1.25MHz |
| Dimming | - | PWM | - | I²C |
| Applications | - | Backlight | - | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-WFBGA, DSBGA | 25-WFBGA, DSBGA | 6-WFBGA, DSBGA | 20-WFBGA |
| Supplier Device Package | 6-DSBGA | 25-DSBGA | 6-DSBGA | 20-TuSMD |
