| Part Number | LP3990QTLX-1.2Q1 | LP3990QTLX-1.8Q1 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.2V @ 150mA | 0.2V @ 150mA |
| Current - Output | 150mA | 150mA |
| Current - Quiescent (Iq) | 80 µA | 80 µA |
| Current - Supply (Max) | 120 µA | 120 µA |
| PSRR | 55dB ~ 35dB (1kHz ~ 10kHz) | 55dB ~ 35dB (1kHz ~ 10kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

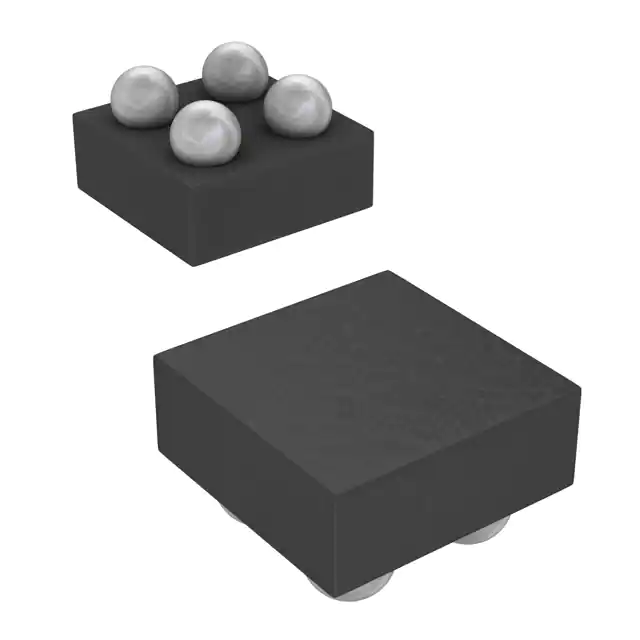

| Package / Case | 4-WFBGA, DSBGA | 4-WFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA (1x1) | 4-DSBGA (1x1) |
