LP3985ITLX-3.0/NOPB
  • Share:

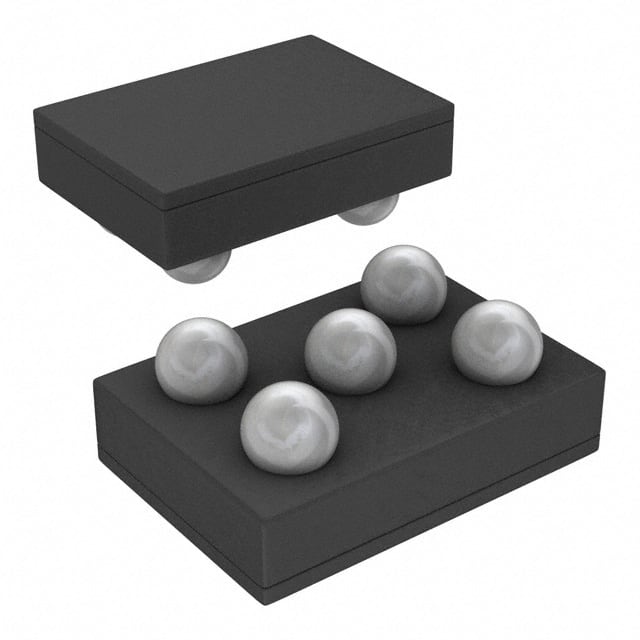

Texas Instruments LP3985ITLX-3.0/NOPB

Manufacturer No:
LP3985ITLX-3.0/NOPB
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
LP3985ITLX-3.0/NOPB Datasheet
ECAD Model:
-
Description:
IC REG LINEAR 3V 150MA 5DSBGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):6V
Voltage - Output (Min/Fixed):3V
Voltage - Output (Max):-
Voltage Dropout (Max):0.1V @ 150mA
Current - Output:150mA
Current - Quiescent (Iq):150 µA
Current - Supply (Max):250 µA
PSRR:50dB ~ 40dB (1kHz ~ 10kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:5-WFBGA, DSBGA
Supplier Device Package:5-DSBGA (1.41x1.08)
0 Remaining View Similar

In Stock

$0.82
247

Please send RFQ , we will respond immediately.

Similar Products

Part Number LP3985ITLX-3.0/NOPB LP3985ITLX-3.1/NOPB   LP3987ITLX-3.0/NOPB   LP3985ITLX-5.0/NOPB   LP3985ITLX-3.3/NOPB   LP3985ITLX-3.2/NOPB   LP3985ITL-3.0/NOPB
Manufacturer Texas Instruments Texas Instruments National Semiconductor Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active Active Obsolete Active
Output Configuration Positive Positive Positive Positive Positive Positive Positive
Output Type Fixed Fixed Fixed Fixed Fixed Fixed Fixed
Number of Regulators 1 1 1 1 1 1 1
Voltage - Input (Max) 6V 6V 6V 6V 6V 6V 6V
Voltage - Output (Min/Fixed) 3V 3.1V 3V 5V 3.3V 3.2V 3V
Voltage - Output (Max) - - - - - - -
Voltage Dropout (Max) 0.1V @ 150mA 0.1V @ 150mA 0.1V @ 150mA 0.1V @ 150mA 0.1V @ 150mA 0.1V @ 150mA 0.1V @ 150mA
Current - Output 150mA 150mA 150mA 150mA 150mA 150mA 150mA
Current - Quiescent (Iq) 150 µA 150 µA 120 µA 150 µA 150 µA 150 µA 150 µA
Current - Supply (Max) 250 µA 250 µA 200 µA 250 µA 250 µA 250 µA 250 µA
PSRR 50dB ~ 40dB (1kHz ~ 10kHz) 50dB ~ 40dB (1kHz ~ 10kHz) 50dB ~ 10dB (10kHz) 50dB ~ 40dB (1kHz ~ 10kHz) 50dB ~ 40dB (1kHz ~ 10kHz) 50dB ~ 40dB (1kHz ~ 10kHz) 50dB ~ 40dB (1kHz ~ 10kHz)
Control Features Enable Enable Enable Enable Enable Enable Enable
Protection Features Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 5-WFBGA, DSBGA 5-WFBGA, DSBGA 5-WFBGA, DSBGA 5-WFBGA, DSBGA 5-WFBGA, DSBGA 5-WFBGA, DSBGA 5-WFBGA, DSBGA
Supplier Device Package 5-DSBGA (1.41x1.08) 5-DSBGA (1.41x1.08) 5-DSBGA (1.41x1.08) 5-DSBGA (1.41x1.08) 5-DSBGA (1.41x1.08) 5-DSBGA (1.41x1.08) 5-DSBGA (1.41x1.08)
