| Part Number | LP3983ITL-1.6/NOPB | LP3983ITL-1.8/NOPB | LP3983ITLX-1.6/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 1.6V | 1.8V | 1.6V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | - | - | - |
| Current - Output | 5mA | 5mA | 5mA |
| Current - Quiescent (Iq) | 3 µA | 3 µA | 3 µA |
| Current - Supply (Max) | 21 µA | 21 µA | 21 µA |
| PSRR | 10dB (10kHz) | 10dB (10kHz) | 10dB (10kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Short Circuit | Short Circuit | Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

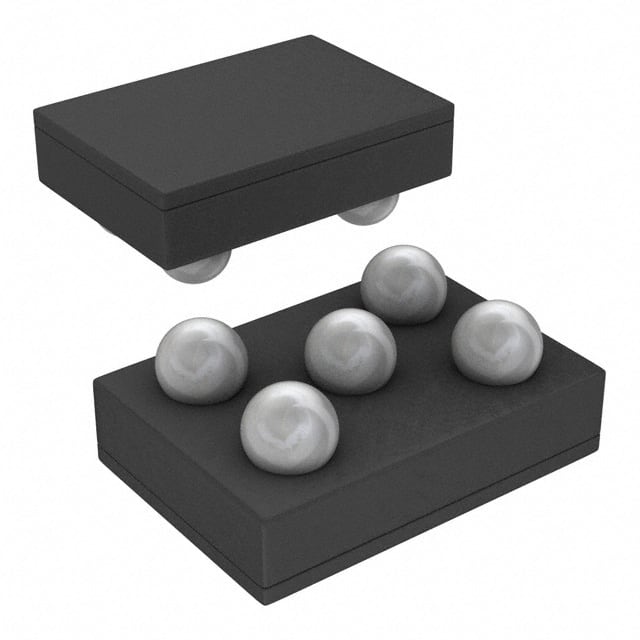

| Package / Case | 5-WFBGA, DSBGA | 5-WFBGA, DSBGA | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) | 5-DSBGA (1.41x1.08) | 5-DSBGA (1.41x1.08) |
