| Part Number | LP3952RL/NOPB | LP39542RL/NOPB | LP3954RL/NOPB | LP3952RLX/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 6 | 13 | 13 | 6 |
| Voltage - Supply (Min) | 3V | 3V | 3V | 3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 5.3V | 4V ~ 5.3V | 4V ~ 5.3V | 5.3V |
| Current - Output / Channel | 40mA | 900mA (Switch) | 900mA (Switch) | 40mA |
| Frequency | 2MHz | 2MHz | 2MHz | 2MHz |
| Dimming | PWM | PWM | PWM | PWM |
| Applications | Backlight | Backlight, Camera Flash | Backlight, Camera Flash | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

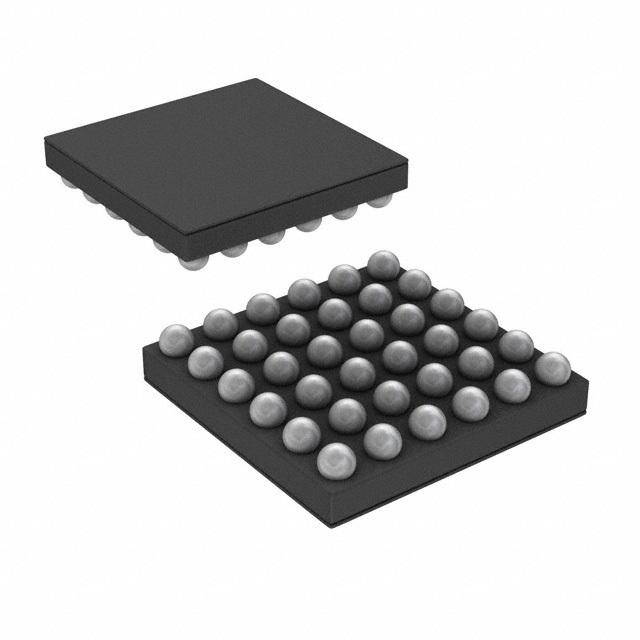

| Package / Case | 36-WFBGA, DSBGA | 36-WFBGA, DSBGA | 36-WFBGA, DSBGA | 36-WFBGA, DSBGA |
| Supplier Device Package | 36-DSBGA (3.5x3.24) | 36-DSBGA (3.5x3.24) | 36-DSBGA (3.5x3.24) | 36-DSBGA |
