Please send RFQ , we will respond immediately.
| Part Number | LP38691SDX-2.5 | LP38692SDX-2.5 | LP38693SDX-2.5 | LP38690SDX-2.5 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 10V | 10V | 10V | 10V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.73V @ 500mA | 1.3V @ 1A | 0.73V @ 500mA | 1.3V @ 1A |
| Current - Output | 500mA | 1A | 500mA | 1A |
| Current - Quiescent (Iq) | 55 µA | 55 µA | 55 µA | - |
| Current - Supply (Max) | 100 µA | 100 µA | 100 µA | 100 µA |
| PSRR | 55dB (120Hz) | 55dB (120Hz) | 55dB (120Hz) | 55dB (120Hz) |
| Control Features | - | - | - | - |
| Protection Features | Over Temperature | Over Temperature | Over Temperature | Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

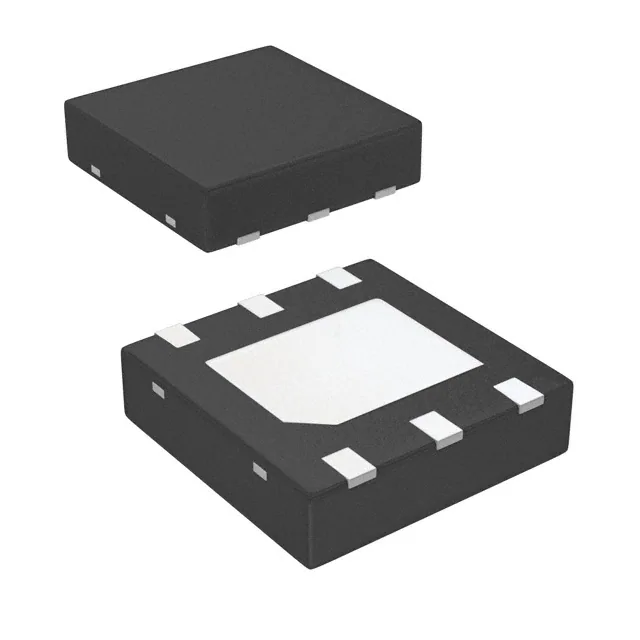

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (3x3) | 6-WSON (3x3) | 6-WSON (3x3) | 6-WSON (3x3) |
