| Part Number | LP38513T-1.8/NOPB | LP38513S-1.8/NOPB |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.43V @ 3A | 0.43V @ 3A |
| Current - Output | 3A | 3A |
| Current - Quiescent (Iq) | 10 mA | 10 mA |
| Current - Supply (Max) | 20 mA | 20 mA |
| PSRR | 73dB ~ 70dB (120Hz ~ 1kHz) | 73dB ~ 70dB (120Hz ~ 1kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount |

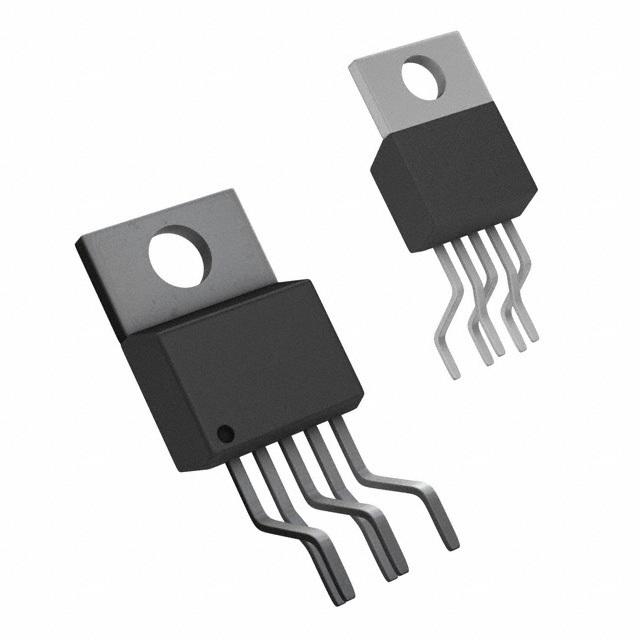

| Package / Case | TO-220-5 Formed Leads | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-220-5 | DDPAK/TO-263-5 |
