| Part Number | LP2992ILD-1.8 | LP2992ILDX-1.8 | LP2992AILD-1.8 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V | 1.8V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.85V @ 250mA | 0.85V @ 250mA | 0.85V @ 250mA |
| Current - Output | 250mA | 250mA | 250mA |
| Current - Quiescent (Iq) | 95 µA | 95 µA | 95 µA |
| Current - Supply (Max) | 4 mA | 4 mA | 4 mA |
| PSRR | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

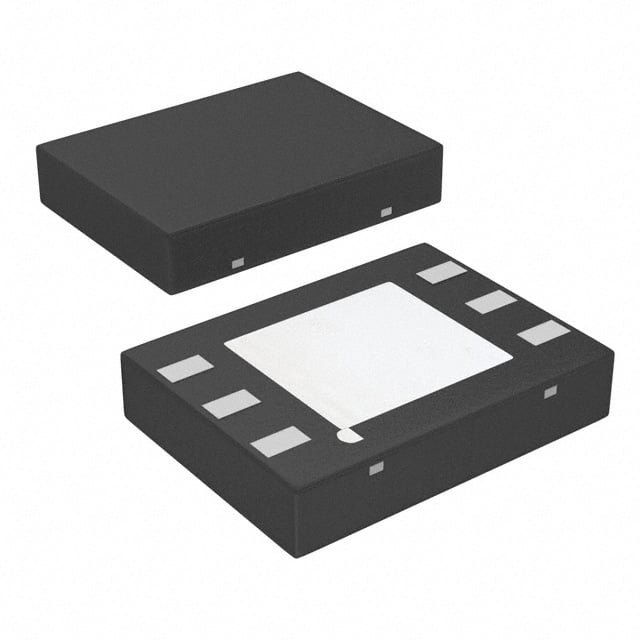

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.92x3.29) | 6-WSON (2.92x3.29) | 6-WSON (2.92x3.29) |
