LP2989AILD-4.0/NOPB
  • Share:

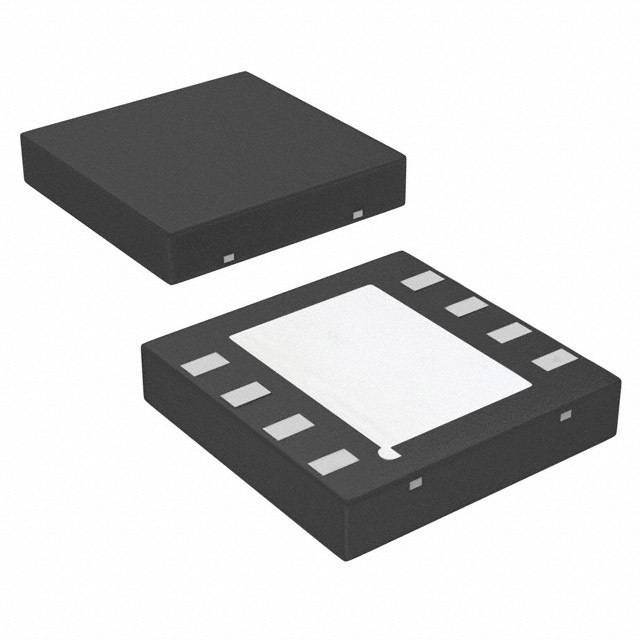

Texas Instruments LP2989AILD-4.0/NOPB

Manufacturer No:
LP2989AILD-4.0/NOPB
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
LP2989AILD-4.0/NOPB Datasheet
ECAD Model:
-
Description:
IC REG LINEAR 4V 500MA 8WSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):16V
Voltage - Output (Min/Fixed):4V
Voltage - Output (Max):-
Voltage Dropout (Max):0.65V @ 500mA
Current - Output:500mA
Current - Quiescent (Iq):175 µA
Current - Supply (Max):9 mA
PSRR:60dB (1kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-WDFN Exposed Pad
Supplier Device Package:8-WSON (4x4)
0 Remaining View Similar

In Stock

-
36

Please send RFQ , we will respond immediately.

Similar Products

Part Number LP2989AILD-4.0/NOPB LP2989AILD-5.0/NOPB   LP2989ILD-4.0/NOPB   LP2989AILD-3.0/NOPB
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Obsolete Active Obsolete Active
Output Configuration Positive Positive Positive Positive
Output Type Fixed Fixed Fixed Fixed
Number of Regulators 1 1 1 1
Voltage - Input (Max) 16V 16V 16V 16V
Voltage - Output (Min/Fixed) 4V 5V 4V 3V
Voltage - Output (Max) - - - -
Voltage Dropout (Max) 0.65V @ 500mA 0.65V @ 500mA 0.65V @ 500mA 0.65V @ 500mA
Current - Output 500mA 500mA 500mA 500mA
Current - Quiescent (Iq) 175 µA 175 µA 175 µA 175 µA
Current - Supply (Max) 9 mA 9 mA 9 mA 9 mA
PSRR 60dB (1kHz) 60dB (1kHz) 60dB (1kHz) 60dB (1kHz)
Control Features Enable Enable Enable Enable
Protection Features Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 8-WDFN Exposed Pad 8-WDFN Exposed Pad 8-WDFN Exposed Pad 8-WDFN Exposed Pad
Supplier Device Package 8-WSON (4x4) 8-WSON (4x4) 8-WSON (4x4) 8-WSON (4x4)
