Please send RFQ , we will respond immediately.
| Part Number | LP2989AILD-2.5 | LP2989AILD-285 | LP2989ILD-2.5 | LP2989AILD-2.8 | LP2988AILD-2.5 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.85V | 2.5V | 2.8V | 2.5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.65V @ 500mA | 0.65V @ 500mA | 0.65V @ 500mA | 0.65V @ 500mA | 0.35V @ 200mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 200mA |
| Current - Quiescent (Iq) | 175 µA | 175 µA | 175 µA | 175 µA | 120 µA |
| Current - Supply (Max) | 9 mA | 9 mA | 9 mA | 9 mA | 3.7 mA |
| PSRR | 60dB (1kHz) | 60dB (1kHz) | 60dB (1kHz) | 60dB (1kHz) | 65dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

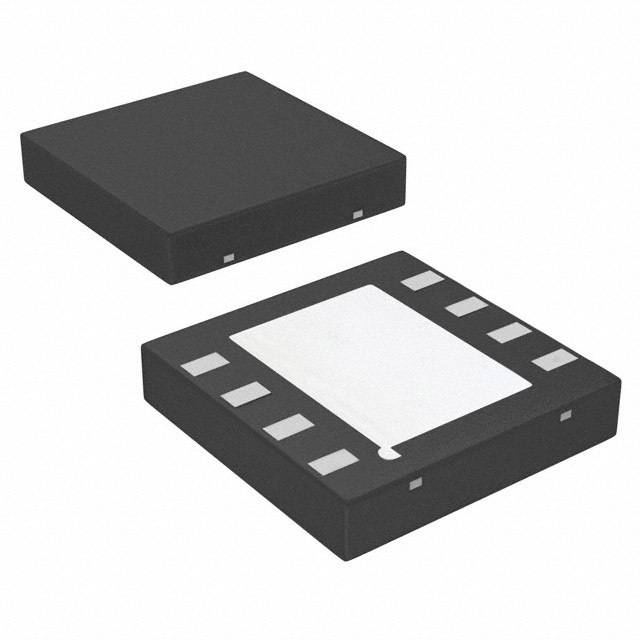

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) |
