Please send RFQ , we will respond immediately.
| Part Number | LP2988AILD-3.3 | LP2988ILD-3.3 | LP2989AILD-3.3 | LP2987AILD-3.3 | LP2988AILD-3.0 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | - |
| Output Type | Fixed | Fixed | Fixed | Fixed | - |
| Number of Regulators | 1 | 1 | 1 | 1 | - |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | - |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V | - |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.35V @ 200mA | 0.35V @ 200mA | 0.65V @ 500mA | 0.35V @ 200mA | - |
| Current - Output | 200mA | 200mA | 500mA | 200mA | - |
| Current - Quiescent (Iq) | 120 µA | 120 µA | 175 µA | 120 µA | - |
| Current - Supply (Max) | 3.7 mA | 3.7 mA | 9 mA | 3.7 mA | - |
| PSRR | 65dB (1kHz) | 65dB (1kHz) | 60dB (1kHz) | 65dB (1kHz) | - |
| Control Features | Enable | Enable | Enable | Enable | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |

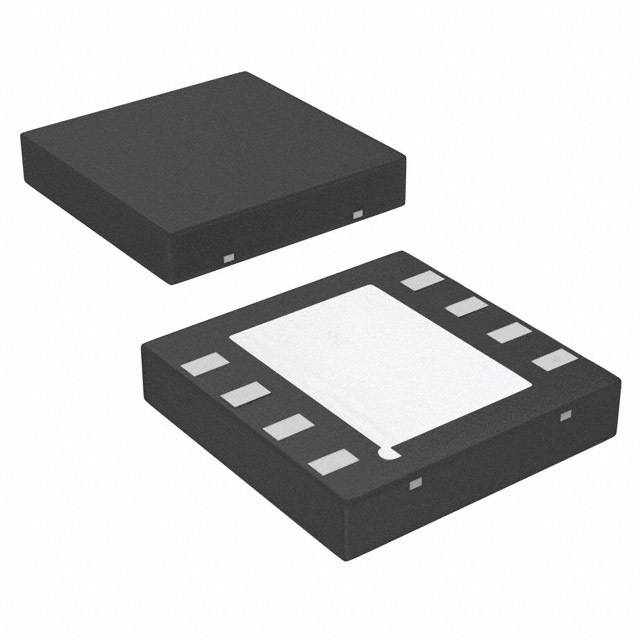

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | - |
| Supplier Device Package | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | - |
