Please send RFQ , we will respond immediately.

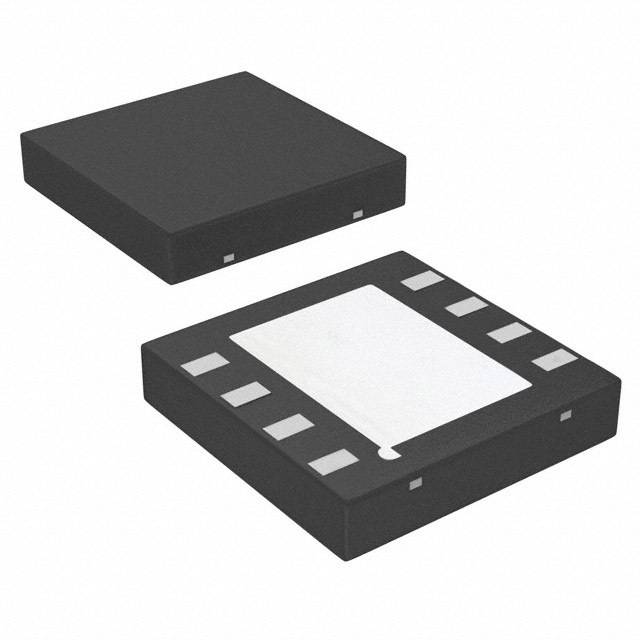

| Part Number | LP2987AILD-3.0 | LP2987ILD-3.0 | LP2988AILD-3.0 | LP2987AILD-3.3 | LP2987AILD-5.0 | LP2986AILD-3.0 |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | - | - | Positive | Positive | Positive |
| Output Type | Fixed | - | - | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | - | - | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | - | - | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 3V | - | - | 3.3V | 5V | 3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.35V @ 200mA | - | - | 0.35V @ 200mA | 0.35V @ 200mA | 0.35V @ 200mA |
| Current - Output | 200mA | - | - | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 120 µA | - | - | 120 µA | 120 µA | 120 µA |
| Current - Supply (Max) | 3.7 mA | - | - | 3.7 mA | 3.7 mA | 3.7 mA |
| PSRR | 65dB (1kHz) | - | - | 65dB (1kHz) | 65dB (1kHz) | 65dB (1kHz) |
| Control Features | Enable | - | - | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | - | - | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | - | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | - | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad | - | - | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) | - | - | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) |
