Please send RFQ , we will respond immediately.
| Part Number | LP2985IBPX-2.5 | LP2985IBPX-2.8 | LP2985IBPX-2.6 | LP2985IBP-2.5 | LP2985IBPX-1.5 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments | National Semiconductor | National Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | - |
| Output Type | Fixed | Fixed | Fixed | Fixed | - |
| Number of Regulators | 1 | 1 | 1 | 1 | - |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | - |
| Voltage - Output (Min/Fixed) | 2.5V | 2.8V | 2.6V | 2.5V | - |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | - |
| Current - Output | 150mA | 150mA | 150mA | 150mA | - |
| Current - Quiescent (Iq) | 95 µA | 95 µA | 95 µA | 95 µA | - |
| Current - Supply (Max) | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | - |
| PSRR | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | - |
| Control Features | Enable | Enable | Enable | Enable | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |

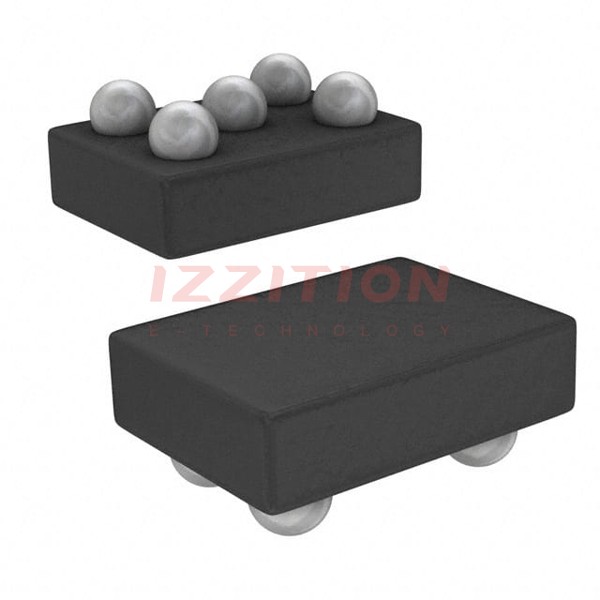

| Package / Case | 5-VFBGA | 5-VFBGA | 5-VFBGA | 5-VFBGA | - |
| Supplier Device Package | 5-µSMD (0.93x1.11) | 5-µSMD (0.93x1.11) | 5-µSMD (0.93x1.11) | 5-µSMD (0.93x1.11) | - |
