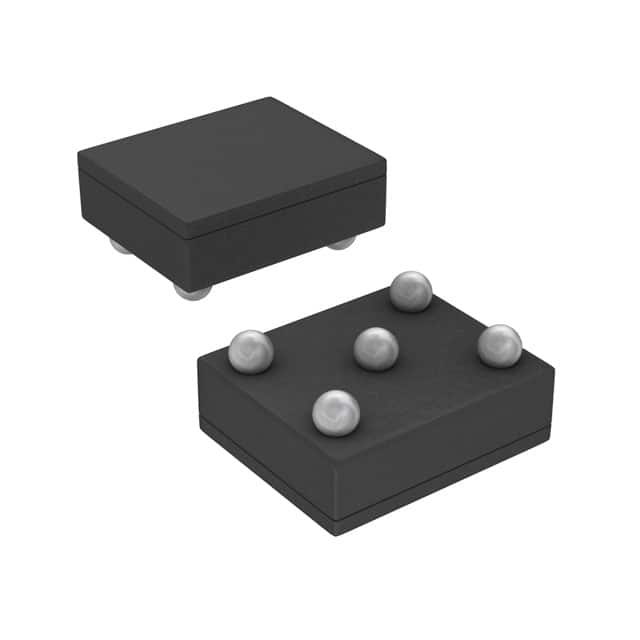

| Part Number | LP2985AITPX-2.7/NOPB | LP2985AITPX-2.8/NOPB | LP2985AITPX-2.9/NOPB | LP2985AITP-2.7/NOPB | LP2985AITPX-2.5/NOPB | LP2985AITPX-2.6/NOPB |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 2.7V | 2.8V | 2.9V | 2.7V | 2.5V | 2.6V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 95 µA | 95 µA | 95 µA | 95 µA | 95 µA | 95 µA |
| Current - Supply (Max) | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA |
| PSRR | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 5-UFBGA, DSBGA | 5-UFBGA, DSBGA | 5-UFBGA, DSBGA | 5-UFBGA, DSBGA | 5-UFBGA, DSBGA | 5-UFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA | 5-DSBGA | 5-DSBGA | 5-DSBGA | 5-DSBGA | 5-DSBGA |
