Please send RFQ , we will respond immediately.
| Part Number | LP2985AIM5-2.5 | LP2985AIM5X-2.5 | LP2985AIM5-2.8 | LP2985AIM5-2.7 | LP2985AIM5-2.9 | LP2985AIM5-4.5 | LP2985AIM5-1.5 | LP2985AIM5-2.0 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Active | Not For New Designs | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.8V | 2.7V | 2.9V | 4.5V | 1.5V | 2V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 95 µA | 95 µA | 95 µA | 95 µA | 95 µA | 95 µA | 95 µA | 95 µA |
| Current - Supply (Max) | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA |
| PSRR | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

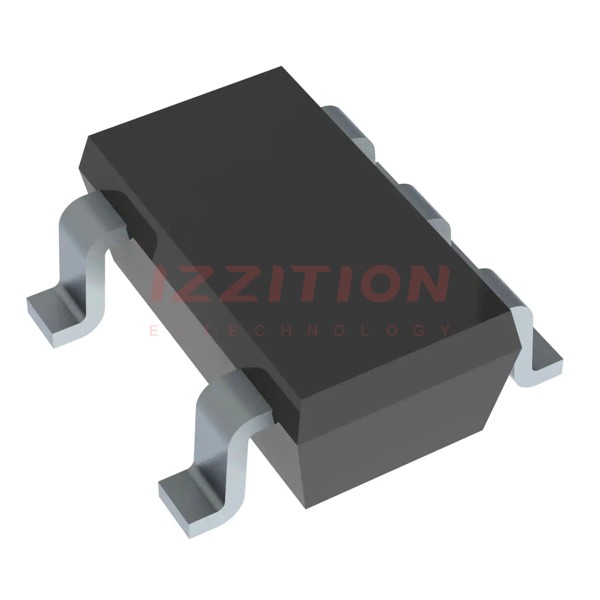

| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
