| Part Number | LP2967IBP-1833/NOPB | LP2967ITP-1833/NOPB | LP2967IBP-2833/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 |
| Voltage - Input (Max) | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V | 1.8V, 3.3V | 2.8V, 3.3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.42V @ 150mA | 0.425V @ 150mA | 0.42V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 300 µA | 300 µA | 300 µA |
| Current - Supply (Max) | 5 mA | 5 mA | 5 mA |
| PSRR | 52dB ~ 70dB (120Hz ~ 1MHz) | 52dB ~ 70dB (120Hz ~ 1MHz) | 52dB ~ 70dB (120Hz ~ 1MHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

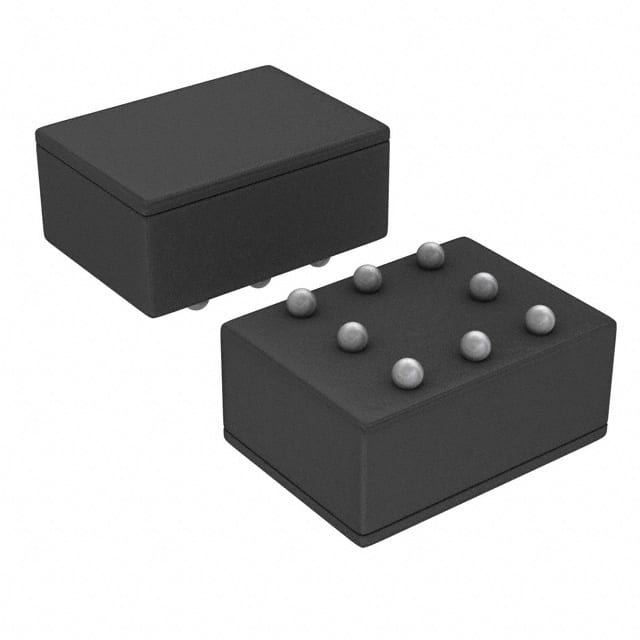

| Package / Case | 8-VFBGA | 8-UFBGA | 8-VFBGA |
| Supplier Device Package | 8-uSMD | 8-uSMD (1.41x1.95) | 8-uSMD |
