| Part Number | LP2957IT | LP2954IT | LP2957AIT | LP2957IS |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 30V | 30V | 30V | 30V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.8V @ 250mA | 0.8V @ 250mA | 0.8V @ 250mA | 0.8V @ 250mA |
| Current - Output | 250mA | 250mA | 250mA | 250mA |
| Current - Quiescent (Iq) | 200 µA | 150 µA | 200 µA | 200 µA |
| Current - Supply (Max) | 33 mA | 33 mA | 33 mA | 33 mA |
| PSRR | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |

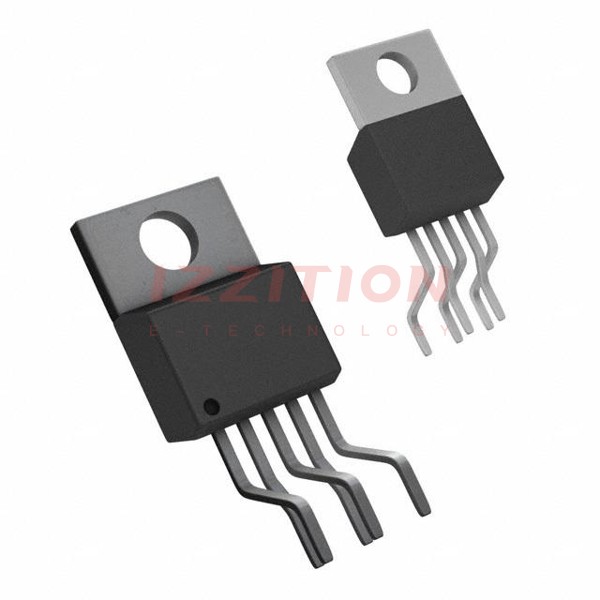

| Package / Case | TO-220-5 Formed Leads | TO-220-3 | TO-220-5 Formed Leads | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-220-5 | TO-220-3 | TO-220-5 | DDPAK/TO-263-5 |
