Please send RFQ , we will respond immediately.

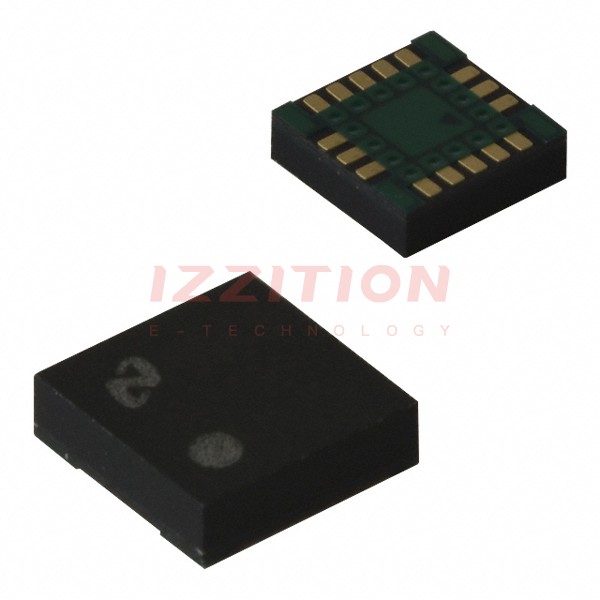

| Part Number | LMX2306SLBX/NOPB | LMX2326SLBX/NOPB | LMX2316SLBX/NOPB | LMX2346SLBX/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | PLL Frequency Synthesizer | PLL Frequency Synthesizer | PLL Frequency Synthesizer | PLL Frequency Synthesizer |
| PLL | Yes | Yes | Yes | Yes with Bypass |
| Input | CMOS | CMOS | CMOS | CMOS, TTL |
| Output | CMOS | CMOS | CMOS | CMOS |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:1 | 2:1 | 2:1 | 2:1 |
| Differential - Input:Output | No/No | No/No | No/No | No/No |
| Frequency - Max | 550MHz | 2.8GHz | 1.2GHz | 2GHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-TFQFN, CSP | 16-TFQFN, CSP | 16-TFQFN, CSP | 16-TFQFN, CSP |
| Supplier Device Package | 16-CSP (3.5x3.5) | 16-CSP (3.5x3.5) | 16-CSP (3.5x3.5) | 16-CSP (3.5x3.5) |
