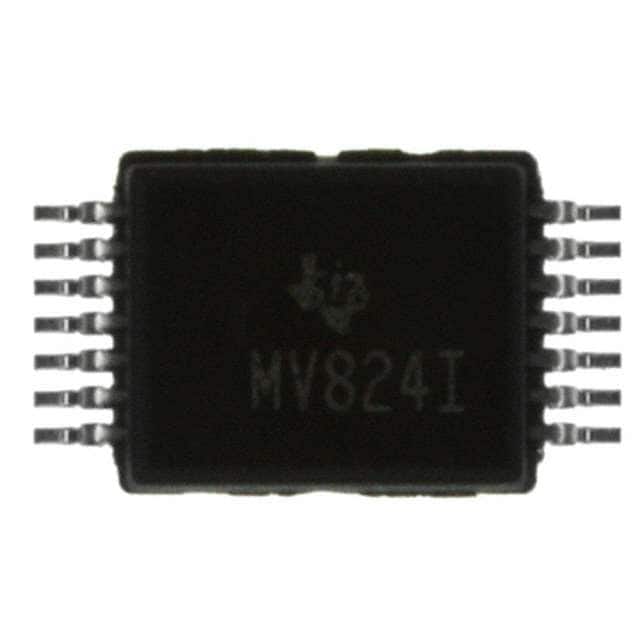

| Part Number | LMV824IDGVR | LMV824NDGVR | LMV824DGVR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 4 | 4 | 4 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 1.9V/µs | 2V/µs | 1.9V/µs |
| Gain Bandwidth Product | 5.5 MHz | 5.6 MHz | 5.5 MHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 40 nA | 40 nA | 40 nA |
| Voltage - Input Offset | 1 mV | 1 mV | 1 mV |
| Current - Supply | 1mA | 1mA (x4 Channels) | 1mA |
| Current - Output / Channel | 45 mA | 45 mA | 45 mA |
| Voltage - Supply Span (Min) | 2.5 V | 2.5 V | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-TFSOP (0.173", 4.40mm Width) | 14-TFSOP (0.173", 4.40mm Width) | 14-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TVSOP | 14-TVSOP | 14-TVSOP |
