Please send RFQ , we will respond immediately.

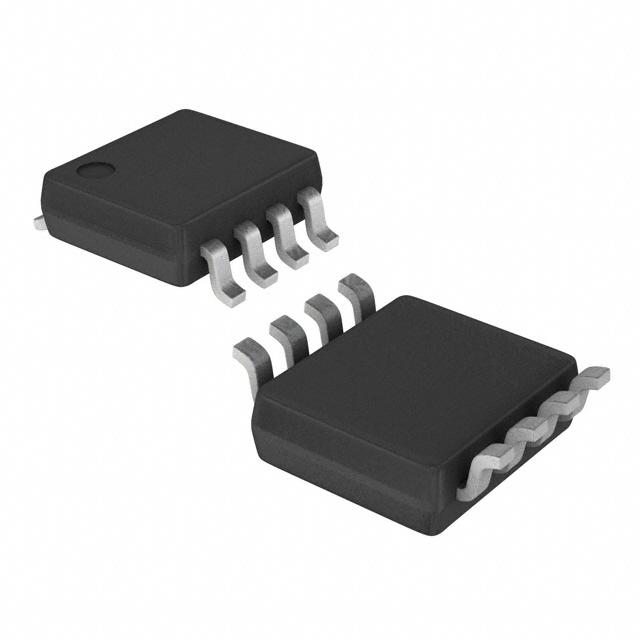

| Part Number | LMV358QDDUR | LMV358IDDUR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Amplifier Type | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 1V/µs | 1V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz |
| -3db Bandwidth | - | - |
| Current - Input Bias | 15 nA | 15 nA |
| Voltage - Input Offset | 1.7 mV | 1.7 mV |
| Current - Supply | 210µA (x2 Channels) | 210µA (x2 Channels) |
| Current - Output / Channel | 40 mA | 40 mA |
| Voltage - Supply Span (Min) | 2.7 V | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-VSSOP | 8-VSSOP |
